3 link options

am trying to find a good 3 link set up.. just seening whats stronger using a cross member or mounting off of frame.. opinons what be cool.. and pics whould be even better.. thanks
chris85053 is offline
Sponsored Links
Advertisement

post #2 of 13 (permalink) Old 09-20-2008, 09:27 AM
Veteran Member

awsumdc's Avatar

Join Date: Dec 2004
Location: SoCal, O.C.
Posts: 2,813
go to these links to see a three link system that goes to the frame. We have done them on two early model Taco's, a late model Taco and an FJ cruiser. Strong as hell and awesome flex with good road manners.

http://rides.webshots.com/album/378870315SnHRiA

http://good-times.webshots.com/album/564203253zyajmq

http://www.villagephotos.com/members...der_id=2024806

Project 07 FJ Cruiser SAS

Here are some pictures for you of the trucks. They all have the same three link system on them. The FJ nd the older Taco use's Johny Joints at both ends of the links and the '05 Taco use's huge 11/4" hiem joints at the axle end and johny joints at the frame on the links.








They all three use different front axles for the swap. The '02 Taco use's the tried and true Dana 44 out of a Jeep Wagoneer.
The Fj Cruiser use's an awesome Diamond axle housing with an FJ80 high pinion center section with elocker.
And the '05 Taco use's a Massive Currie Enterprise's Rock Jock 60 with 35 spline axles 5.38 gears and ford F-450 1 ton knuckles and unit bearings. Super Super strong.

Three different axles on three different trucks that all use the same three link system.

'05 "SAC" Double Cab TRD Sport 4x4 with Marlin Crawler "Taco" Box and a bunch of other stuff.
Linked, Locked & Large!
"THE BEAST"

AKA "THE BIG SEXY"
Wyatt Scott

3.4 auto crawler install

Installing an FJ Case into an 05+ Tacoma

My Build thread. Building "The Beast"

GOT SAC?
awsumdc is offline
post #3 of 13 (permalink) Old 09-20-2008, 05:40 PM
Veteran Member

BOVADS's Avatar

Join Date: Nov 2006
Location: Surprise, AZ, Prudhoe bay, AK,
Posts: 5,094
Quote:
Originally Posted by awsumdc View Post
just saw this pic, nice pic, and i know exactly where it is
BOVADS is offline
post #4 of 13 (permalink) Old 09-23-2008, 09:33 AM
Veteran Member

Symon623's Avatar

Join Date: Mar 2007
Location: Payson, AZ
Posts: 5,207
Send a message via AIM to Symon623 Send a message via MSN to Symon623 Send a message via Yahoo to Symon623
Chris, here are some pics of my set up. I went off the frame, sacrificed some ground clearence for streetability. The ground clearence really hasn't been an issue.

Here you can see the passenger side frame mount and the upper link mount bolt through the frame;

Drivers side;

All 3;



More pics are here;
http://s78.photobucket.com/albums/j1...ota/?start=all

If you do a crossmember then it has to be removable and then you have to unhook the front suspension for trans removal????

Good luck.

Sy
85 Syota, 6.0/700r4/203/300/60's/Detroits/37 PBRR's/§XX§
02 Cummins tow rig, a few goodies
High Country Renegades
Symon623 is offline
post #5 of 13 (permalink) Old 09-25-2008, 12:01 AM Thread Starter
Senior Member

chris85053's Avatar

Join Date: Nov 2007
Location: phoenix
Posts: 420
anyone out there runs a upper link on the pass side frame with out hitting exhaust?
chris85053 is offline
post #6 of 13 (permalink) Old 09-25-2008, 08:01 PM
Veteran Member

awsumdc's Avatar

Join Date: Dec 2004
Location: SoCal, O.C.
Posts: 2,813
Quote:
Originally Posted by chris85053 View Post
anyone out there runs a upper link on the pass side frame with out hitting exhaust?
Yep. All of our top links are on the passenger side at the frame and none hit the exaust. I'll try to get some pics up fr you.



'05 "SAC" Double Cab TRD Sport 4x4 with Marlin Crawler "Taco" Box and a bunch of other stuff.
Linked, Locked & Large!
"THE BEAST"

AKA "THE BIG SEXY"
Wyatt Scott

3.4 auto crawler install

Installing an FJ Case into an 05+ Tacoma

My Build thread. Building "The Beast"

GOT SAC?
awsumdc is offline
post #7 of 13 (permalink) Old 09-26-2008, 12:28 AM Thread Starter
Senior Member

chris85053's Avatar

Join Date: Nov 2007
Location: phoenix
Posts: 420
how should the upper link sit? try to get it level? or at same plane as your lowers?
chris85053 is offline
post #8 of 13 (permalink) Old 09-26-2008, 08:33 AM
Veteran Member

awsumdc's Avatar

Join Date: Dec 2004
Location: SoCal, O.C.
Posts: 2,813
Quote:
Originally Posted by chris85053 View Post
how should the upper link sit? try to get it level? or at same plane as your lowers?
My top link is almost level with the bottom links. This weekend I'll get some numbers for you so you can have an idea of how we set it up.

'05 "SAC" Double Cab TRD Sport 4x4 with Marlin Crawler "Taco" Box and a bunch of other stuff.
Linked, Locked & Large!
"THE BEAST"

AKA "THE BIG SEXY"
Wyatt Scott

3.4 auto crawler install

Installing an FJ Case into an 05+ Tacoma

My Build thread. Building "The Beast"

GOT SAC?
awsumdc is offline
post #9 of 13 (permalink) Old 09-26-2008, 12:21 PM Thread Starter
Senior Member

chris85053's Avatar

Join Date: Nov 2007
Location: phoenix
Posts: 420
ok cool thanks
chris85053 is offline
post #10 of 13 (permalink) Old 10-14-2008, 08:10 PM
Senior Member

Hutch98's Avatar

Join Date: Dec 2004
Posts: 294
Possible for some more pics of the pass side??

"Beer is proof that god loves us and wants us to be happy" Benjamin franklin
Hutch98 is offline
post #11 of 13 (permalink) Old 10-14-2008, 09:34 PM
Veteran Member

awsumdc's Avatar

Join Date: Dec 2004
Location: SoCal, O.C.
Posts: 2,813
Sorry... ended up busy that weekend. I'll pm you my number. Call me saturady and I'll get some pictures of mine and the '02 Tacoma for you.

'05 "SAC" Double Cab TRD Sport 4x4 with Marlin Crawler "Taco" Box and a bunch of other stuff.
Linked, Locked & Large!
"THE BEAST"

AKA "THE BIG SEXY"
Wyatt Scott

3.4 auto crawler install

Installing an FJ Case into an 05+ Tacoma

My Build thread. Building "The Beast"

GOT SAC?
awsumdc is offline
post #12 of 13 (permalink) Old 10-14-2008, 09:37 PM Thread Starter
Senior Member

chris85053's Avatar

Join Date: Nov 2007
Location: phoenix
Posts: 420
ok cool .. thanks alot...
chris85053 is offline
post #13 of 13 (permalink) Old 11-03-2008, 11:42 AM
Veteran Member

awsumdc's Avatar

Join Date: Dec 2004
Location: SoCal, O.C.
Posts: 2,813

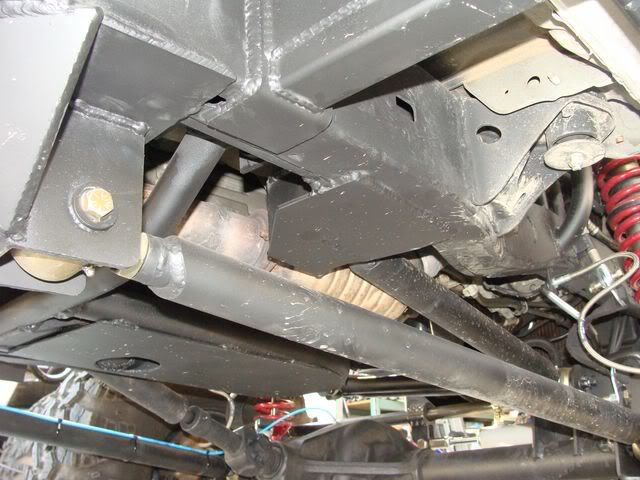

Here are some of the pictures from Dans Three link.




'05 "SAC" Double Cab TRD Sport 4x4 with Marlin Crawler "Taco" Box and a bunch of other stuff.
Linked, Locked & Large!
"THE BEAST"

AKA "THE BIG SEXY"
Wyatt Scott

3.4 auto crawler install

Installing an FJ Case into an 05+ Tacoma

My Build thread. Building "The Beast"

GOT SAC?
awsumdc is offline
