Talking TejasYOTA '01 Tacoma DC Build

First I want to thank Adam, Kevin, Brad & Jayce who has helped wrench on my Tacoma.
And to the many others that I have used their threads on the items I have read up on and how they installed the equipment.

Next, I bought my 2001 Tacoma Double Cab TRD Limited new in 2000.
Only major options were the TRD package, Limited package and e-locker.

Please email me with any questions.
OR
You can go to the EXPO Section to post the questions.
TejasYOTA's Q&A Thread - click here


For the modifications listed below; I have provided a hyperlink.
So you can go directly to that thread without needing to wait for all the photos from the other threads to load.


In the beginning, I mainly used my truck to drive to trail heads to either hike, rock climb or mountain bike.
So most of my wheeling were on the original weak ass AT tires that came with the truck and on fire roads and crossing of small streams.


Most of my time, energy and Money went to my other ride, a 2000 BMW Z3 2.8L straight-6 Roadster.
As you can see I spent my weekends mainly racing her in three different states (NC, SC & VA).


After my move to San Antonio, I semi-retired from racing, due to the long drives and hellahot temps.

After a few years of not really doing much stuff, I decided to look into wheeling and I found YOU ALL and the TX-TTORA Chapter!
Hanging with the San Antonio crew, was eye opening and amazing on how well even a stock Tacoma could handle most easy to moderate wheeling spots.
Now I had a new hobby to sink my time, energy and Money okay most of my money and I still do a lot with my BMW Car club.

Engine:.....3.4L, normally aspirated
Trans:......Auto
T-Case:....Stock
Rear Axle:......Electric Locker - factory
Tires:.......285/75-R16 Goodyear DuraTRAC
Wheels:....16X8, Toyota FZJ80 (1993) rims

Below are the things I have done to my Tacoma.
SUSPENSION

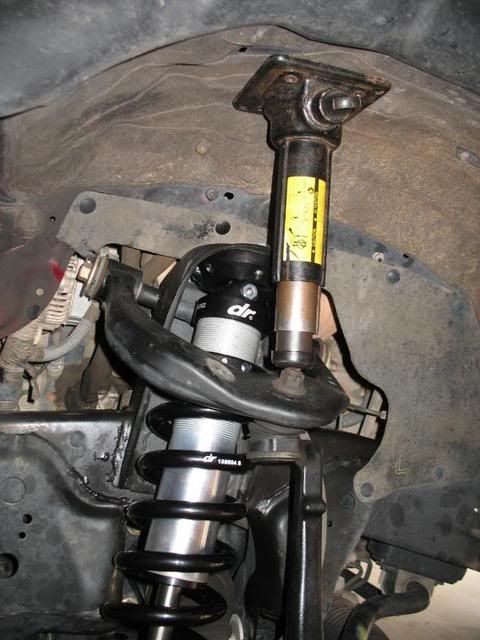

Front Shocks/springs: Donahue Coil-Overs

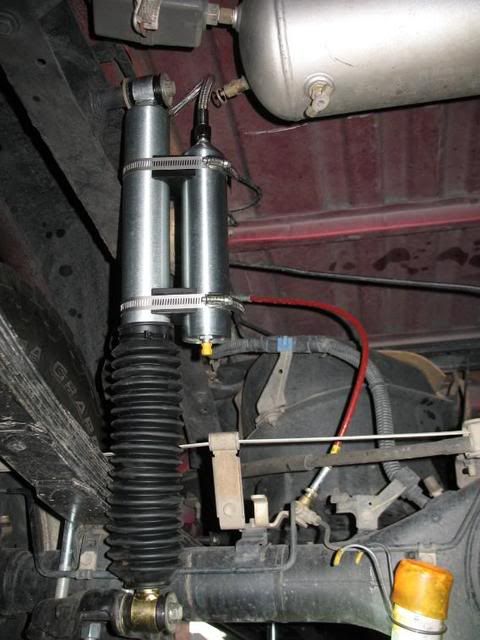

Rear Shocks:...Donahue Signature Reserves

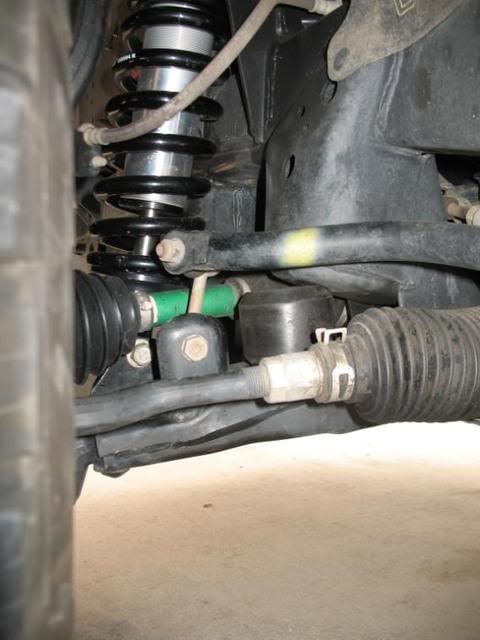

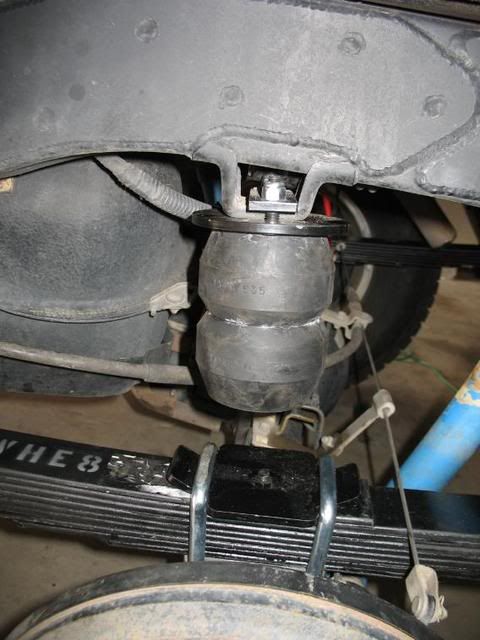

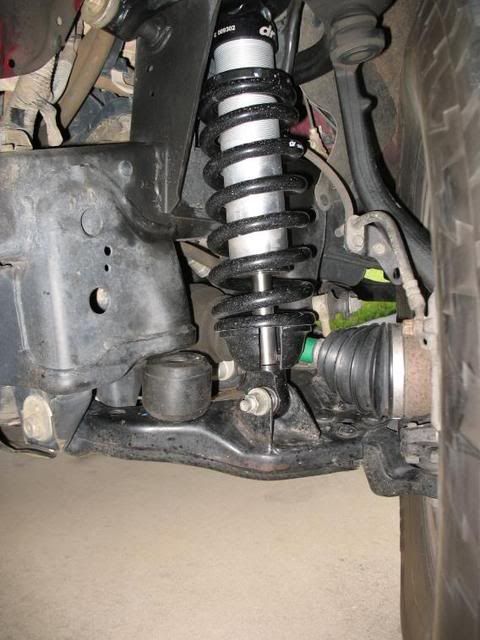

Bumpstops:.....Timbren front and rear

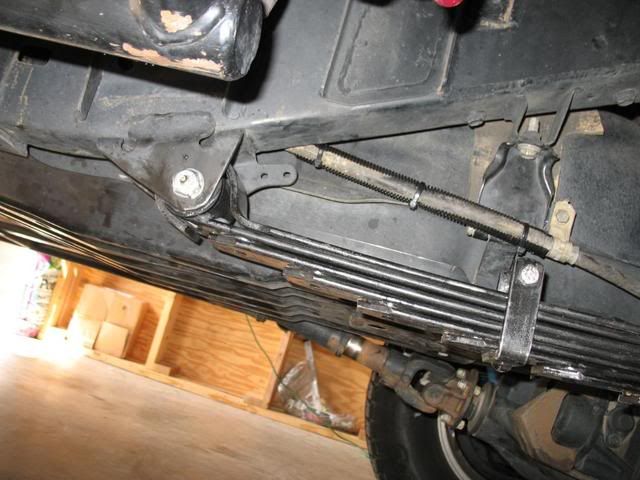

Rear Leafs:......DEAVER-10 Springs
Emergency Brake Bracket (e-brake) on Hub modification
UCA:........ Total Chaos UCA

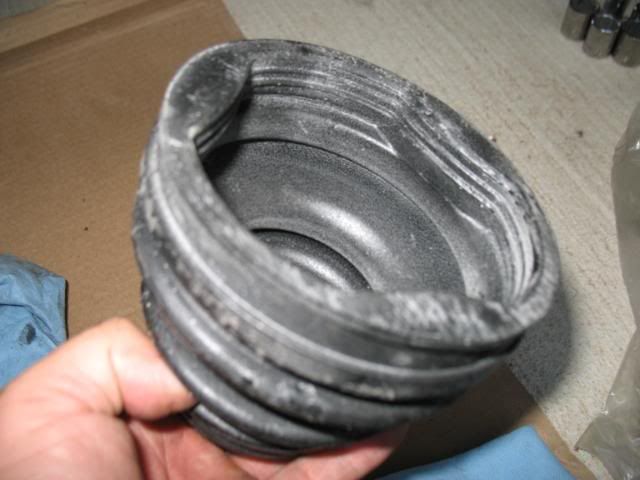

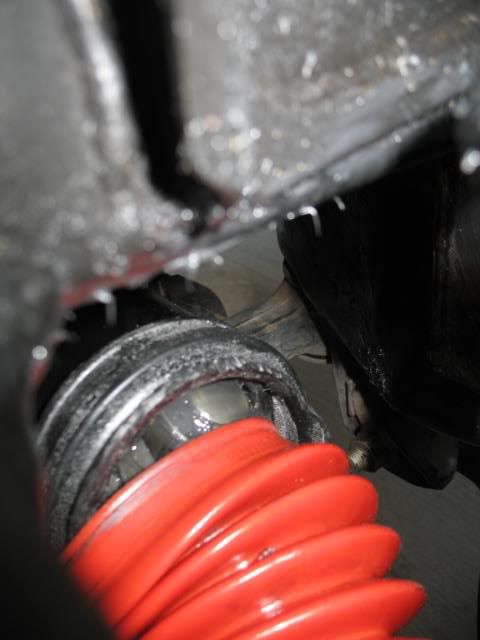

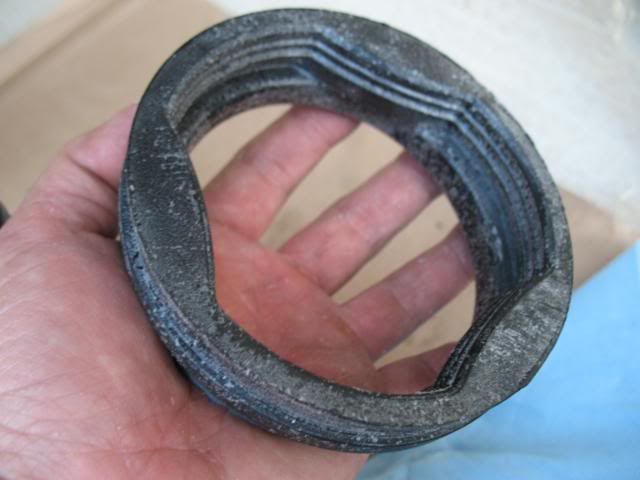

CV Boots:.....Off Road Solutions CV Boots

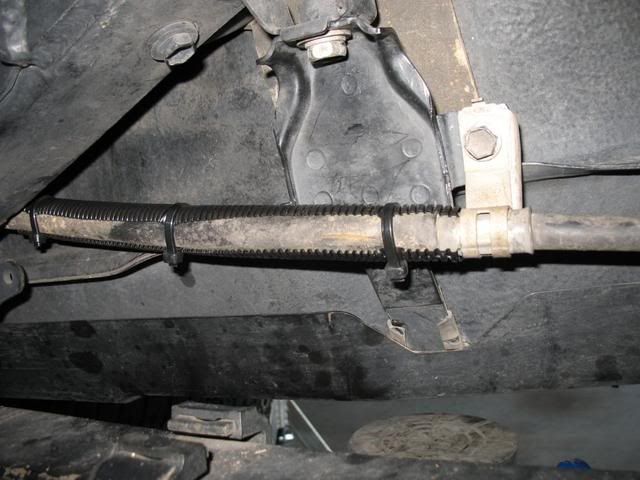

Brakes:.......Goodridge Extended Brake Lines - front and rear
Body Lift:....Roger Brown 1-inch w/ heavy duty hardware
POWERSLOT Rotors and HAWK Brake pads
FZJ80 (1993) Land Cruiser Wheels
Goodyear DuraTRAC Tires 285/75-R16
No Loss Valve Caps

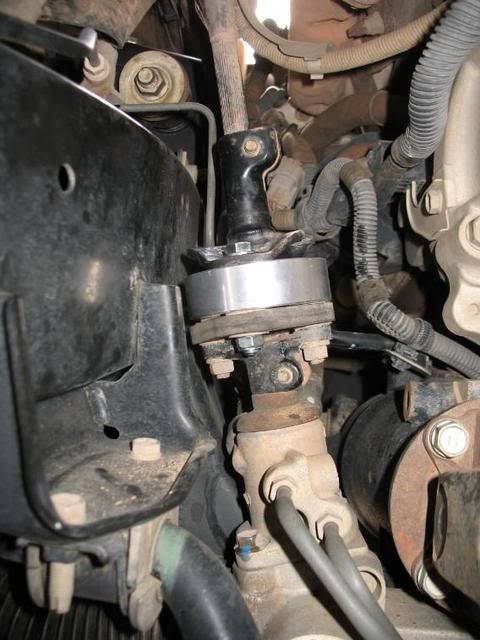

Steering Rack-Replacement and then fix
Possible modification to Steering Rack Frame
Steering Rack-corrosion issue
Lower Ball Joint-Replacement


PROTECTION
Trail-Gear Front Bumper
CBI Fabrication Heavy Duty Clamp-on Sliders

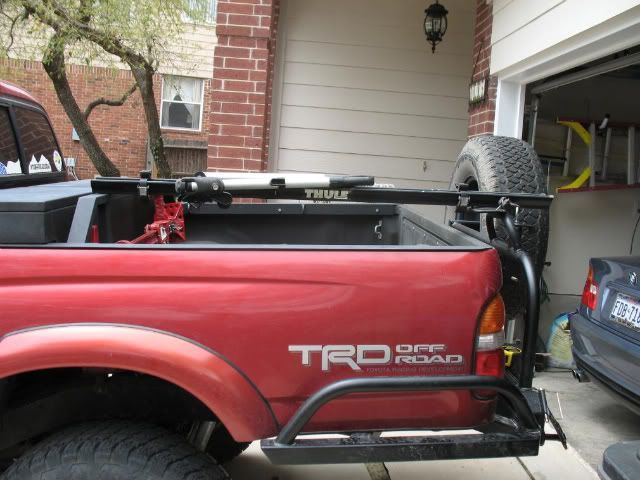

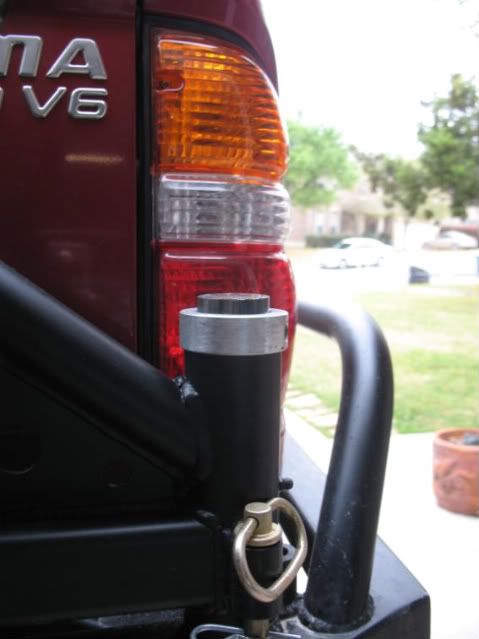

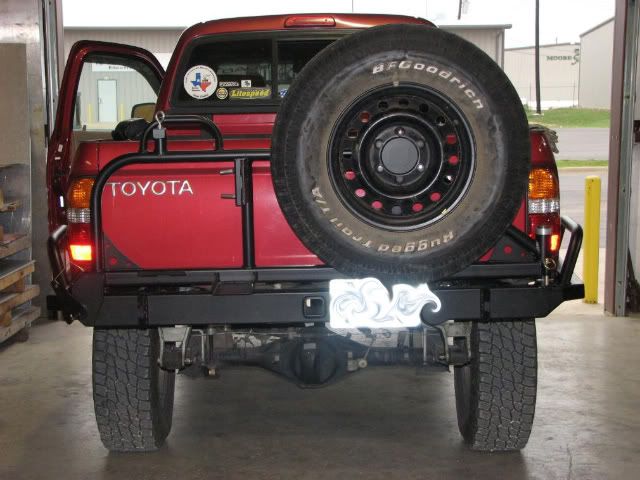

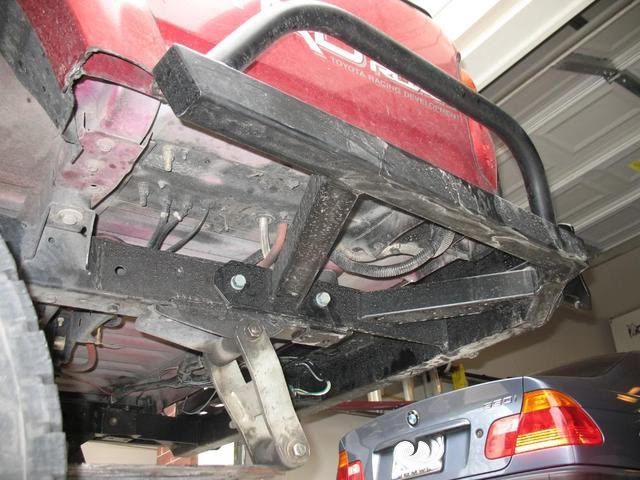

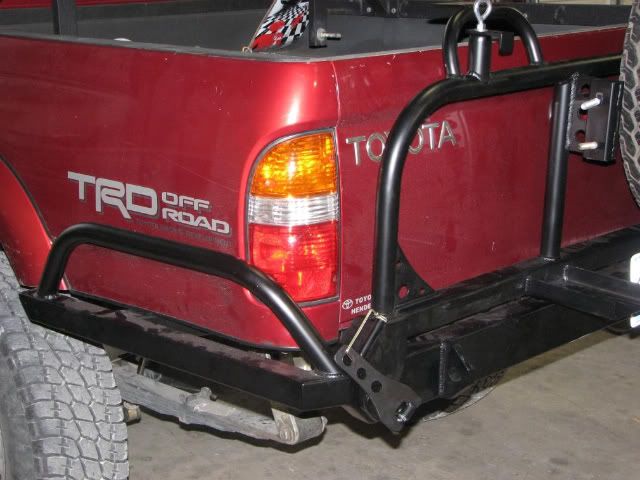

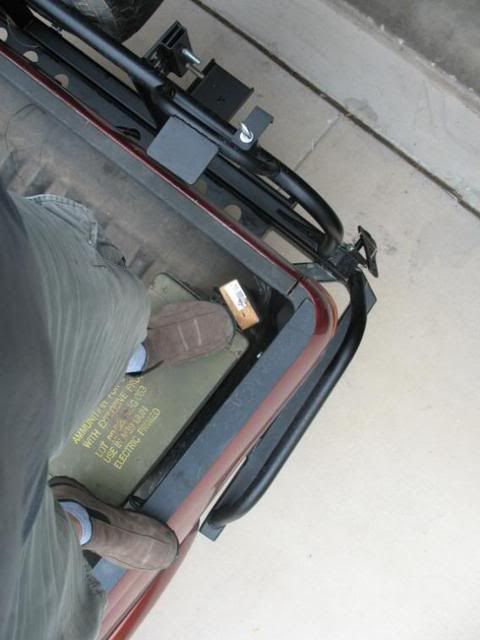

CBI Fabrication Custom Rear Swing-out Bumper

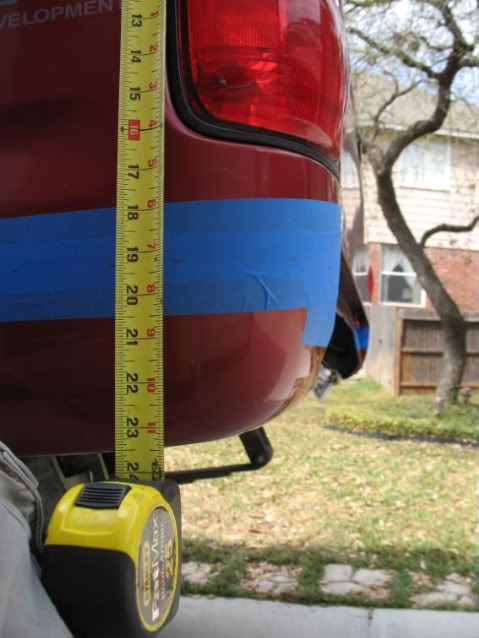

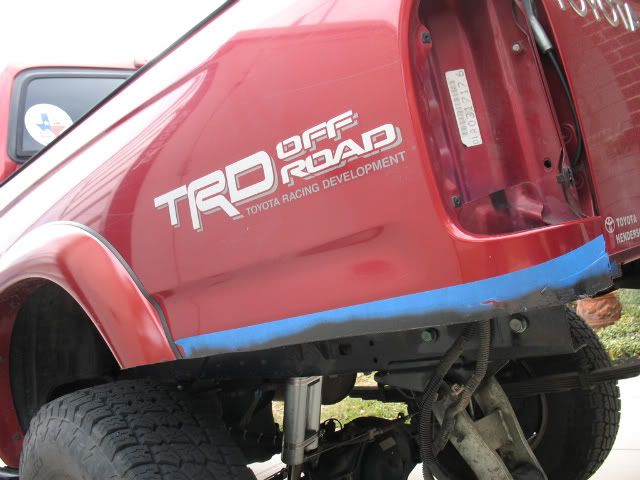

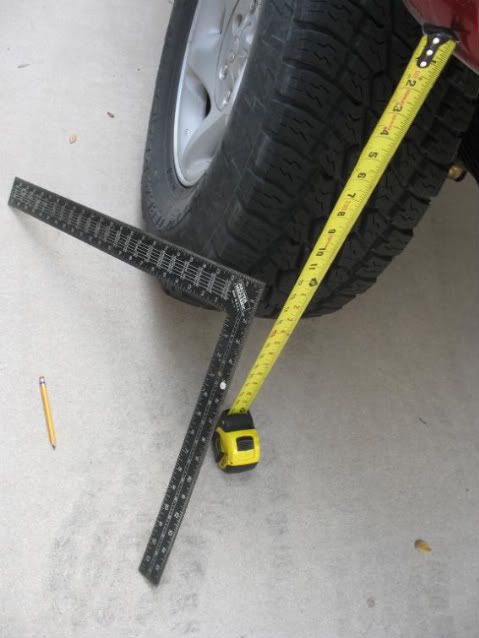

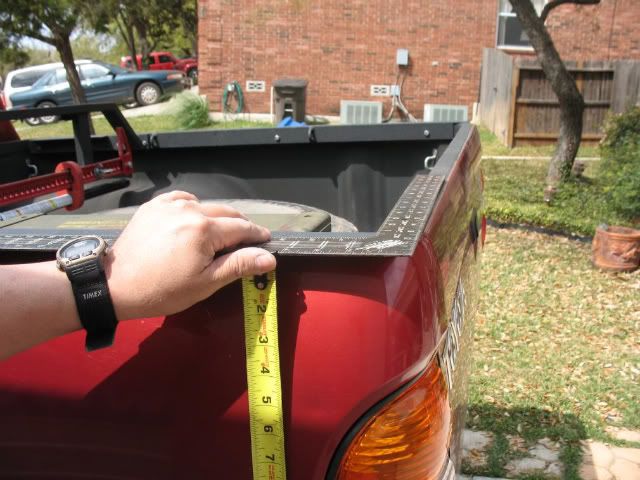

Cutting Fender for Bumper Clearance
CBI Bumper tilt repair

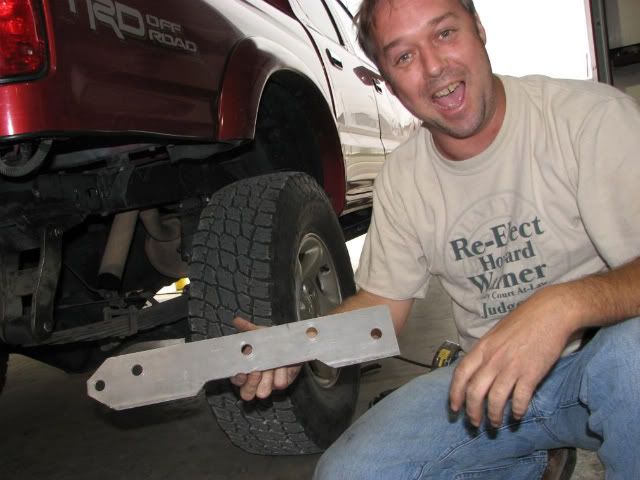

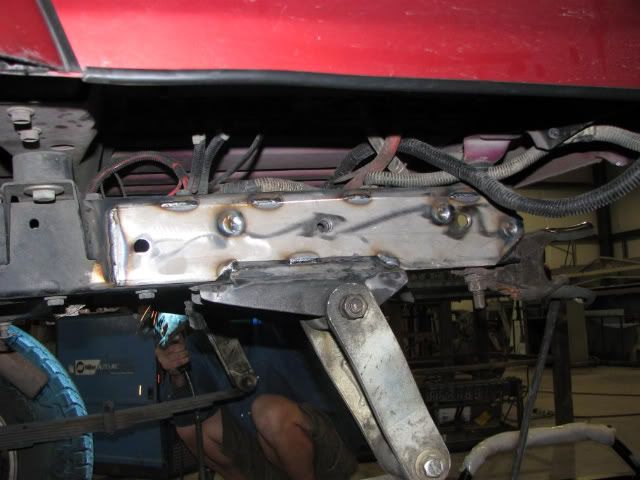

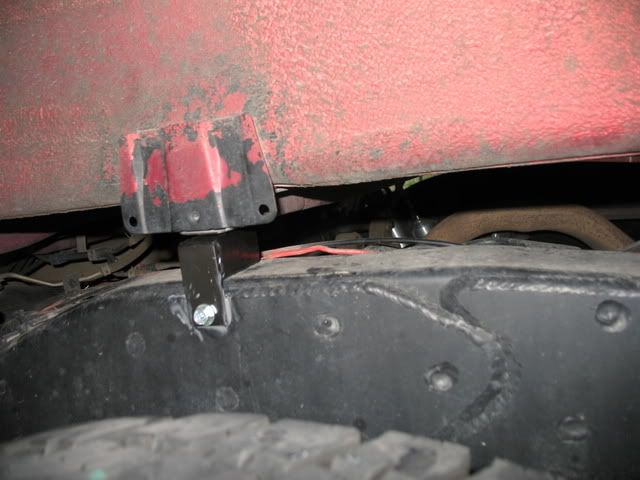

CBI Frame Reinforcement Plates
Bud-Built Front Skidplate
Pinch-weld Mod

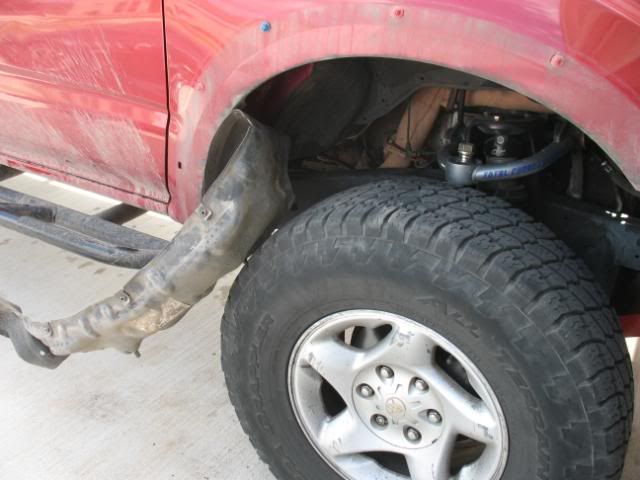

4XInnovations' Tube Doors-mirror & locks
Bud-Built Belly-Pan and Cross Member - pending install
R.O.R.E. e-Locker Skidplate (Ruari's Off-Road Equipment) - 4x4wire.com rore_skidplate
R.O.R.E.-website here!!!
Rhino Spraying Liner
TUFFY Deluxe Stereo Console 8-inch - - NEW

RECOVERY

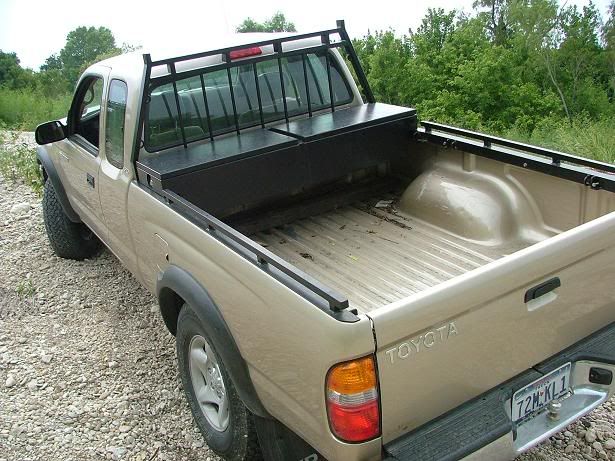

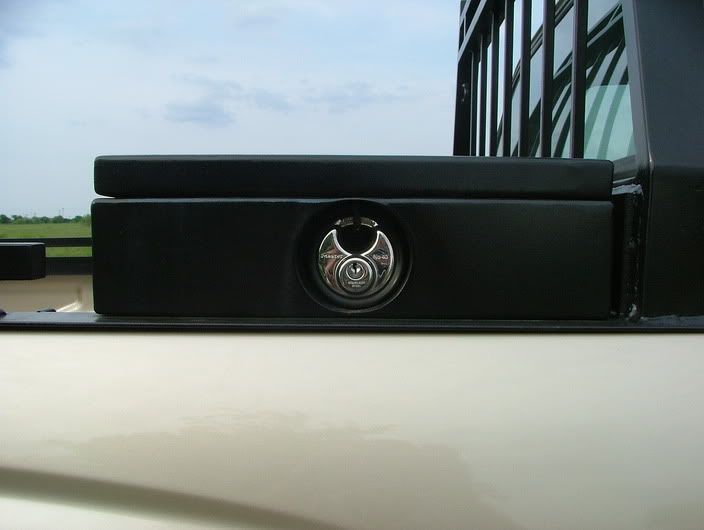

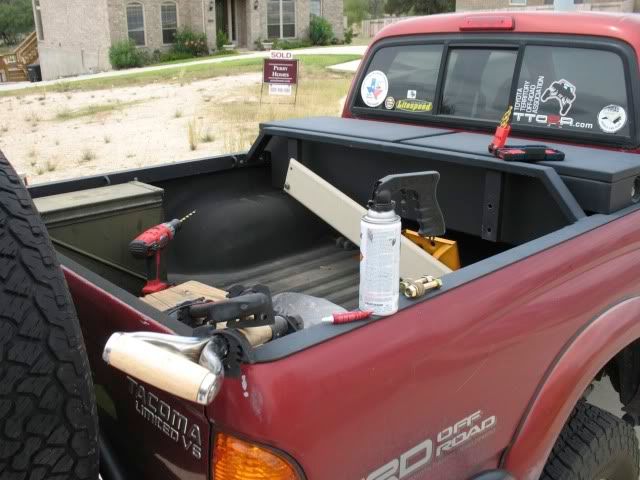

JFab custom Tool Box, Bed Bar & Bed Rail

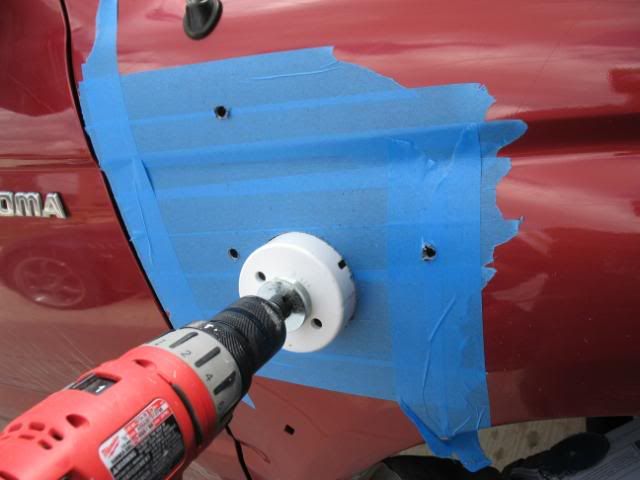

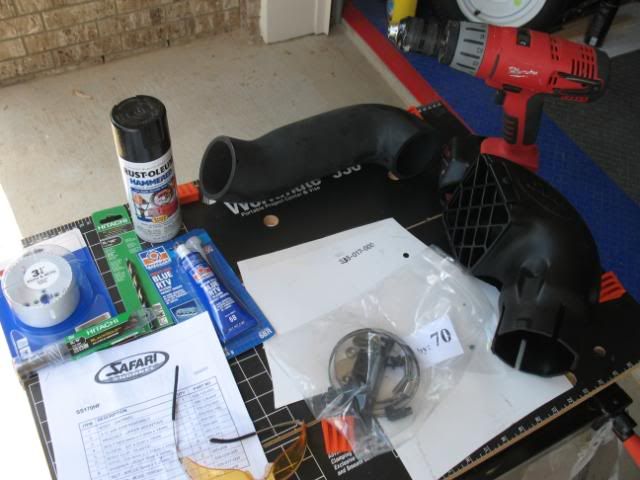

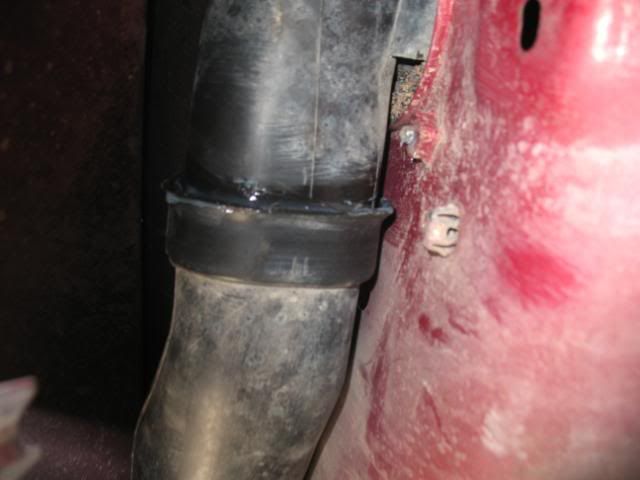

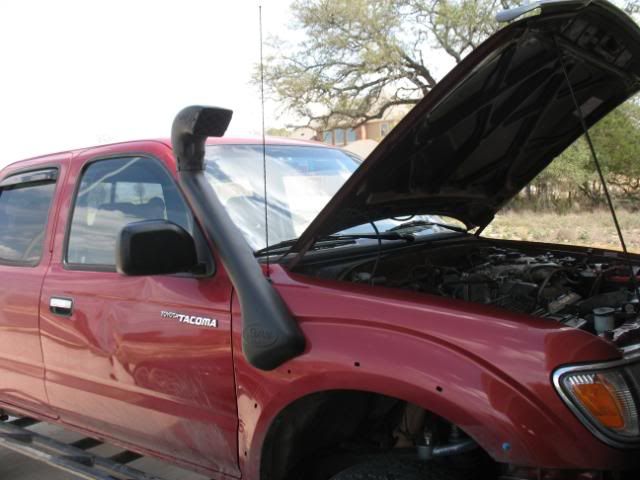

ARB Safari SNORKLE

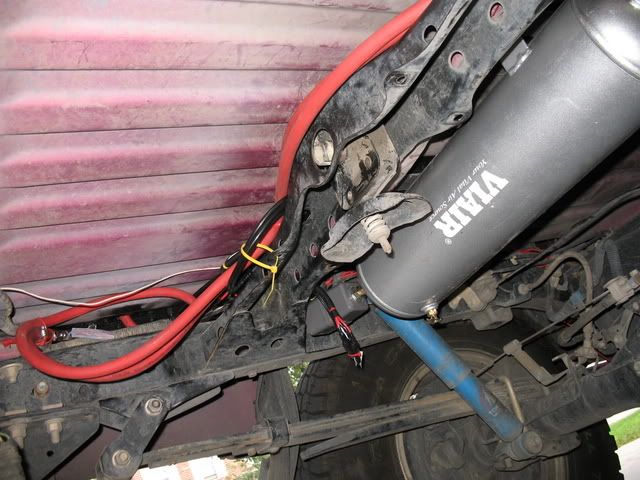

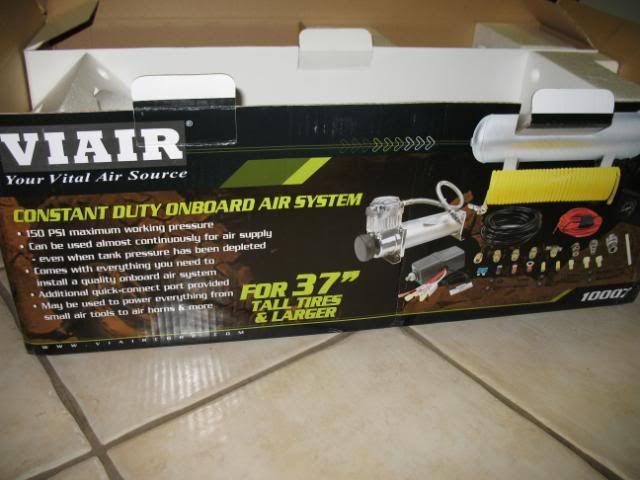

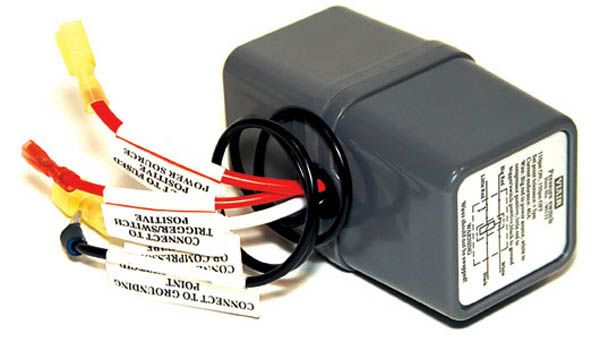

VIAIR 450 Constant Duty Air Compressor w/ 2.5 Gallon Tank
Military 20MM Ammo Can

Shovel and Axe mount - on Bed Bar

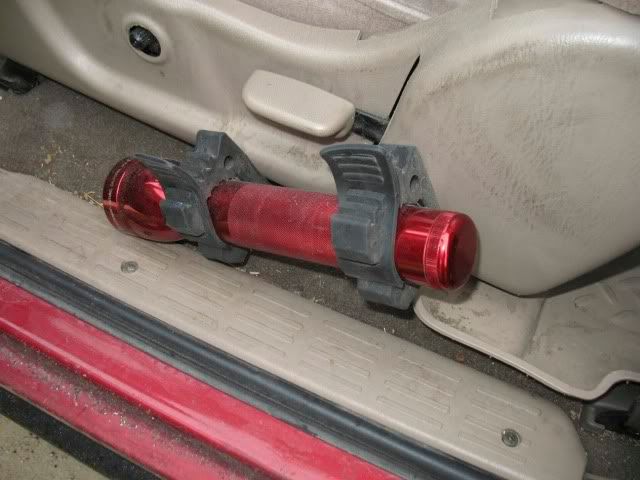

Flashlights (MAGLite and SURE-Fire)

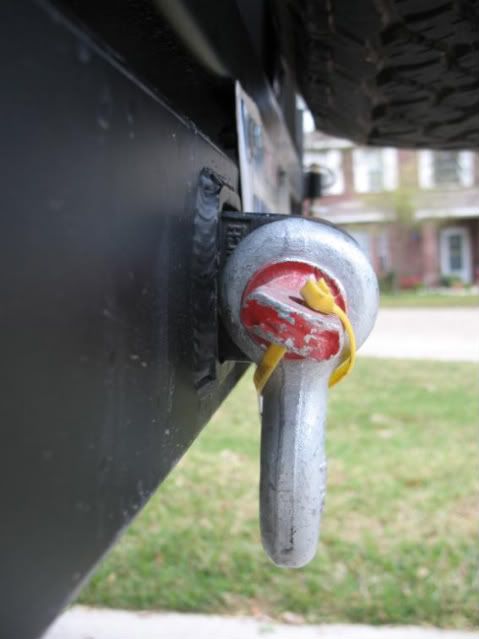

Hi-Lift 48-inch & Modification to Bumper
Hi-Lift 60-inch Extreme

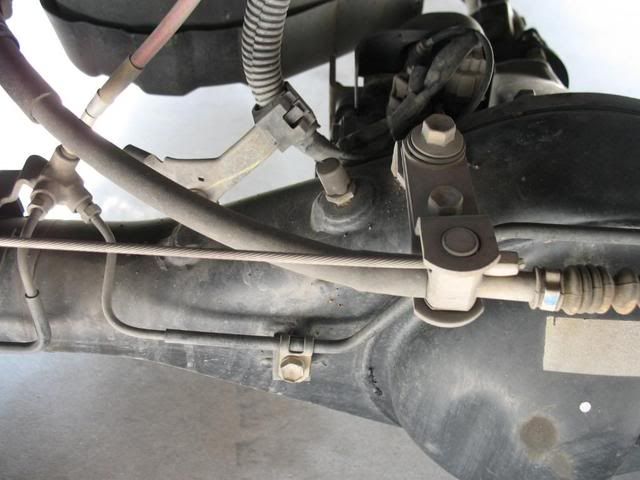

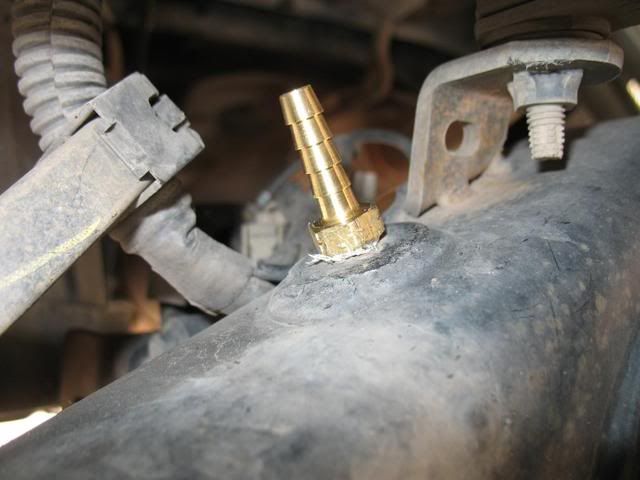

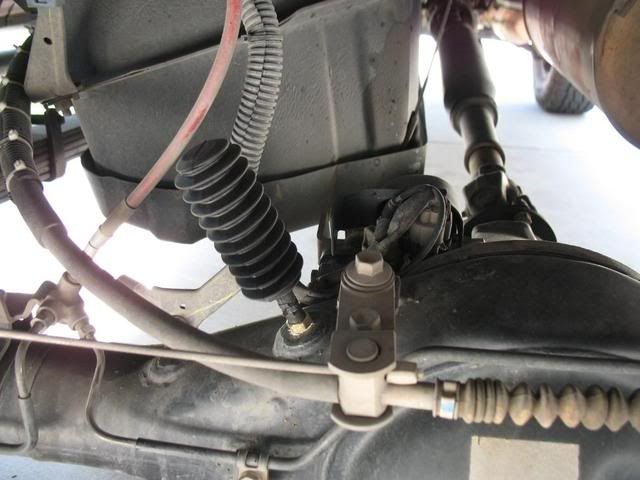

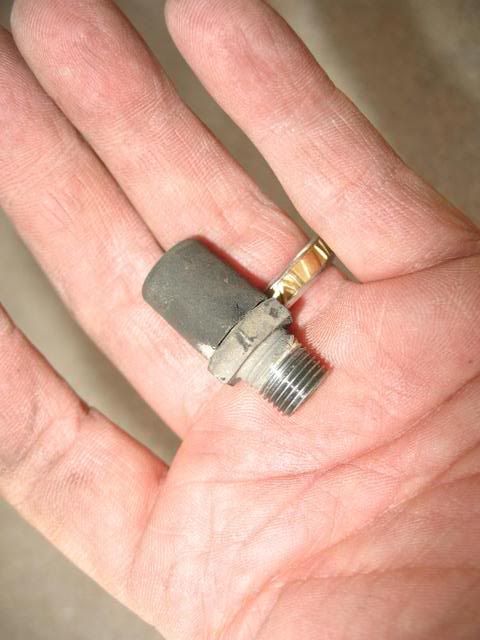

Rear axle - Breather replacement - Creeper Breather
Mac's Custom Tie-Downs
Relocated Oil Filter Mount


TW-CB installation and information
Firestik antenna-install and SWR Measuring

Additional Modifications:
Wiring your truck - REAL BASIC
BlueSEA SafetyHUB Fuse Box and HELLA Relay Box
LED Rock Lights
LightFORCE 170 Striker HIDs
LED Flood Lights

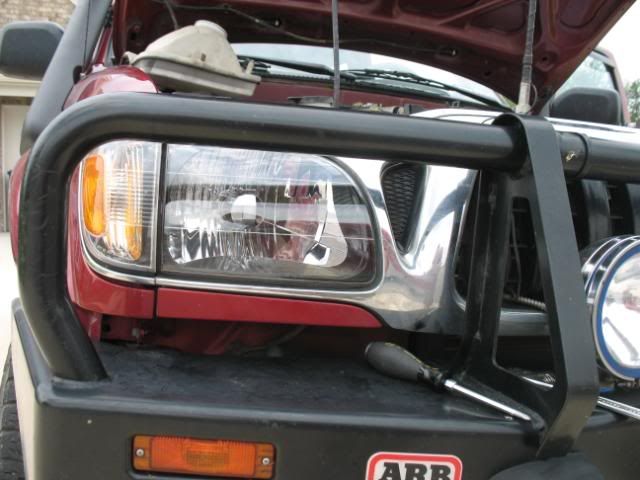

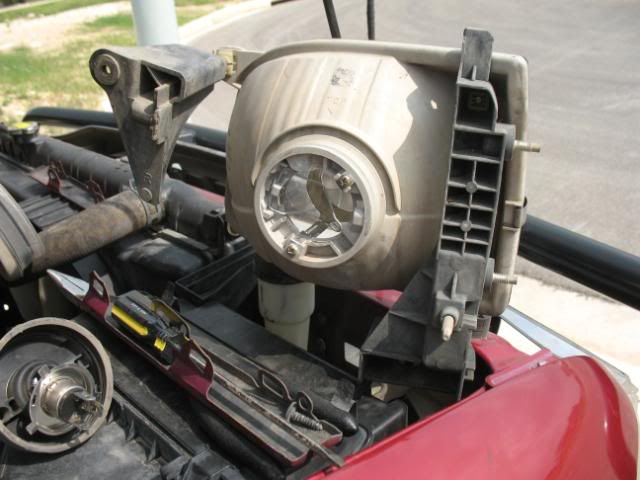

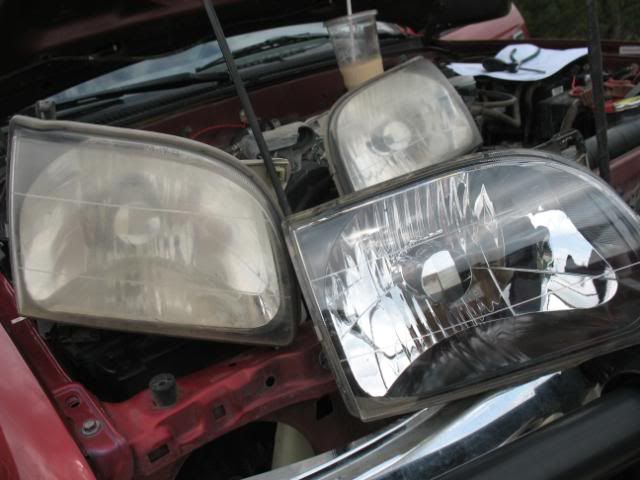

Headlamp (foggy) replacement
Recovery gear (straps, shackles, tool kit, med kit, etc.)
Grey Wire Modification for the E-Locker
Side View Mirror Replacement
Rearview Mirror-WINK 5 Panel Panoramic
Cuprest's Rubber Insert Replaced with a Mousepad
Turn Signal Flasher Relay
Fuel Filter replacement

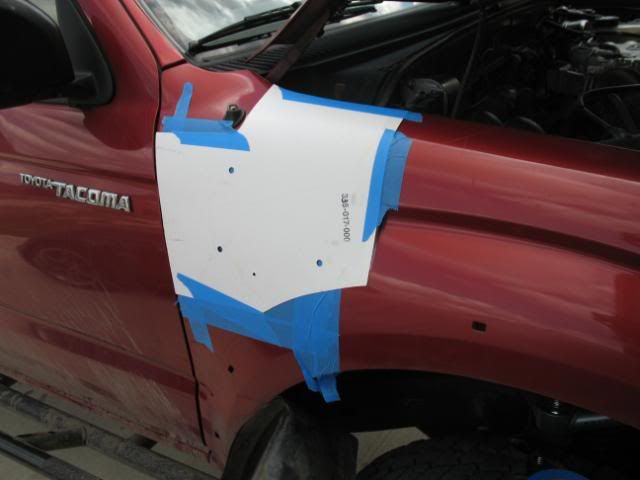

Fender Flare removal - - NEW
Charging Cables-Big 3 - - NEW
Alpine 4-channel amp
POLK Separates front and rear
Valantine1 Radar Detector - hardwired
Optima Red Top
Pioneer MVH-X560BT radio, Uniden 980SSB cb, RAM X-Grip mount
CB antenna - Wilson 1000 w/ magnet mount (current)
TEQ Bottle Opener on the bumper

*******
REMOVED From use - due to issues

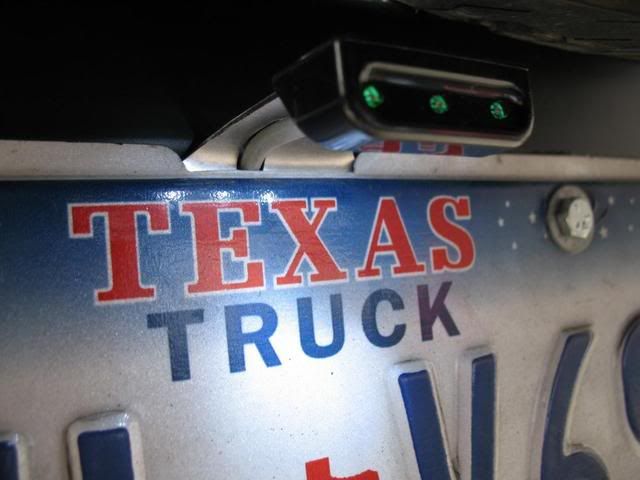

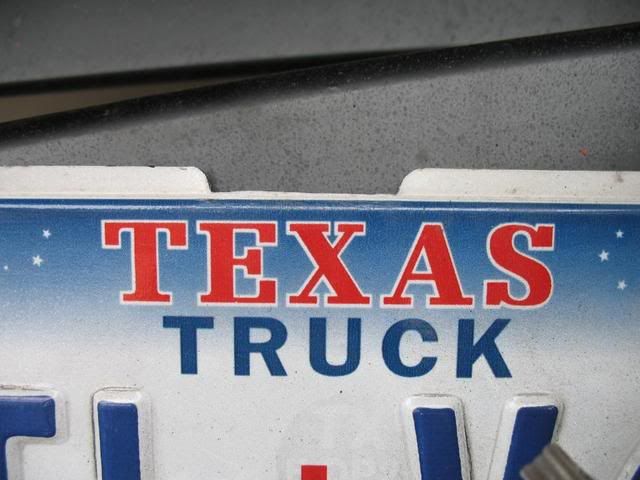

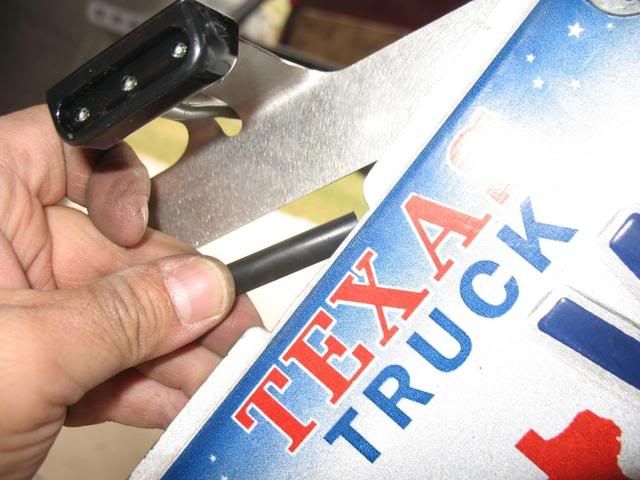

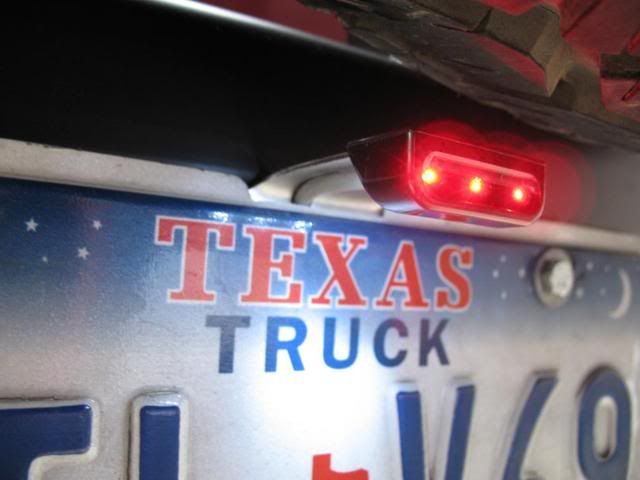

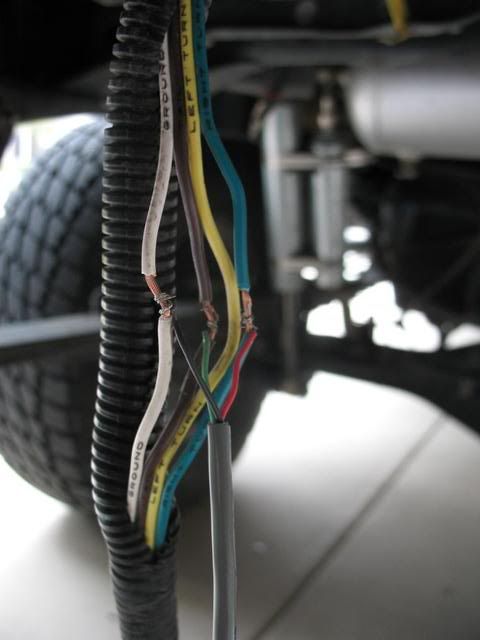

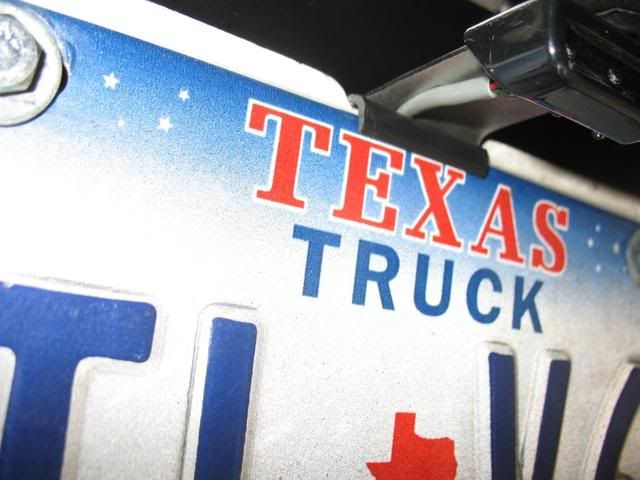

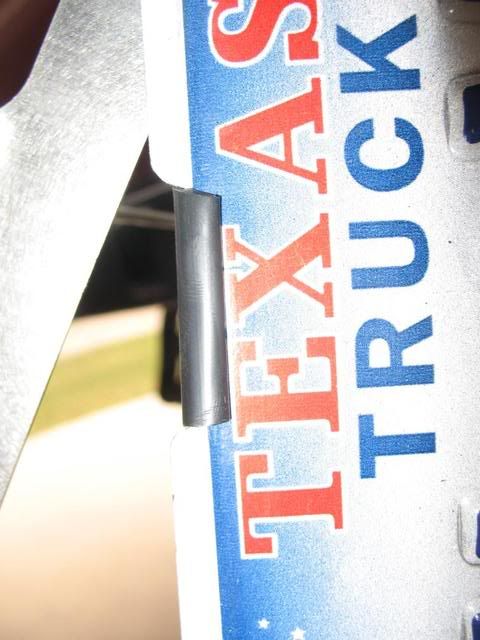

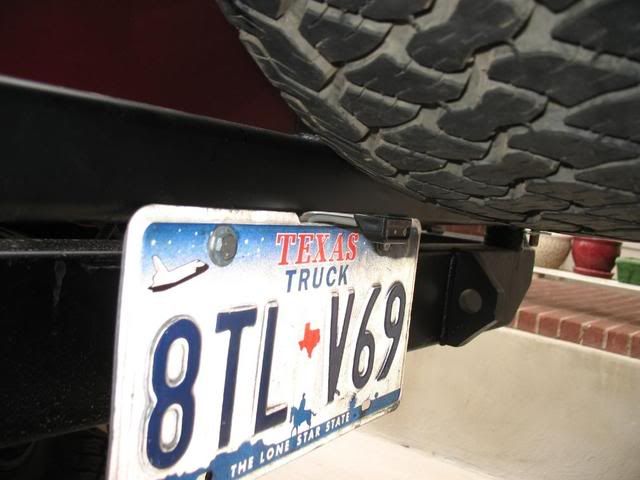

License Plate Light by LitePLATE
>.......LitePlate UPDATE, this item failed at the PCB, I have removed.
>.......I will NOT RECOMMEND this part for use.

ProCLIP & OTTERBox Cell Phone Mount

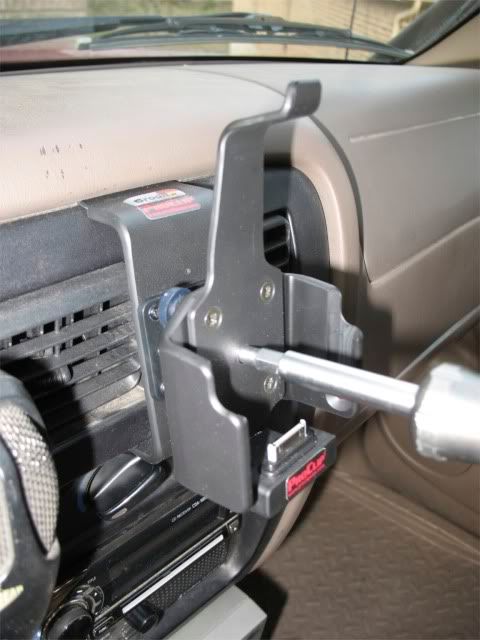

>....the ProCLIP's weld nut stripped from the plastic.
It now does not tighten.
I have replaced the system with a RAM X-Grip.

Cobra 18 WX-ST II and a Wilson Silver Load Flex-4 (4-feet long)-(past) - replaced with a Uniden 980SSB and Wilson 1000

*******

Garage stuff:

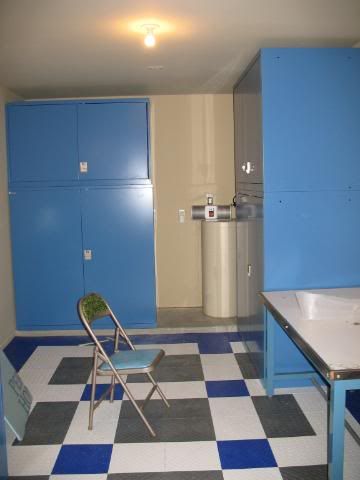

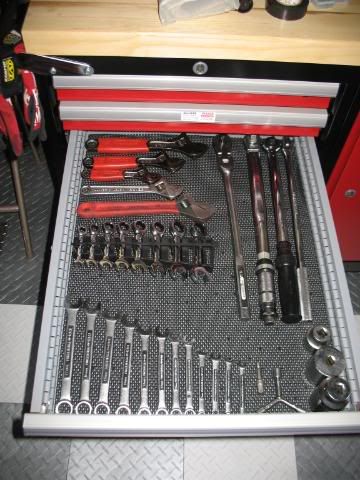

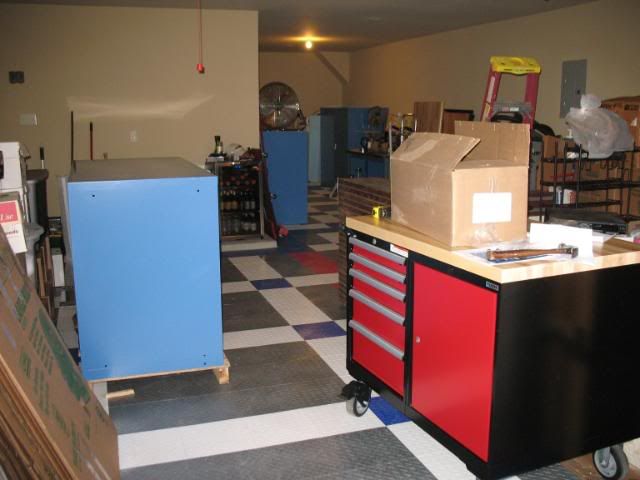

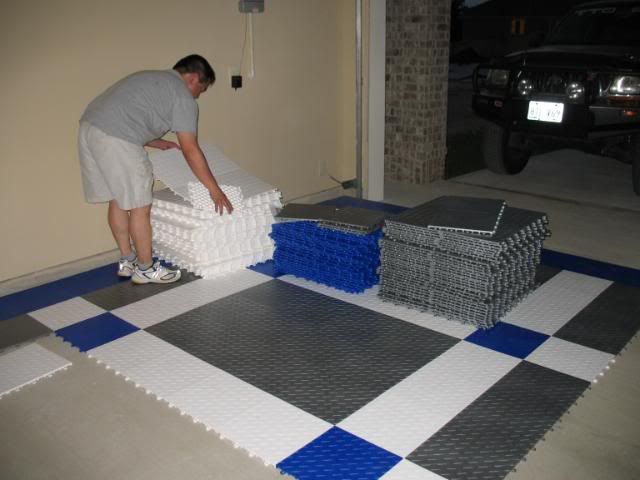

RaceDeck Flooring

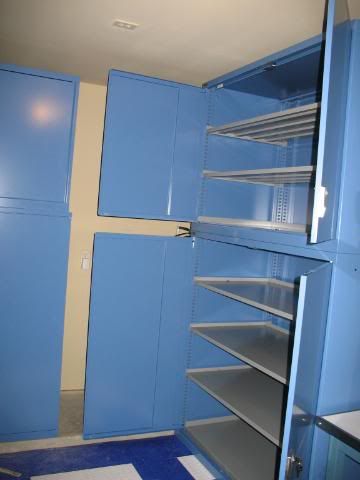

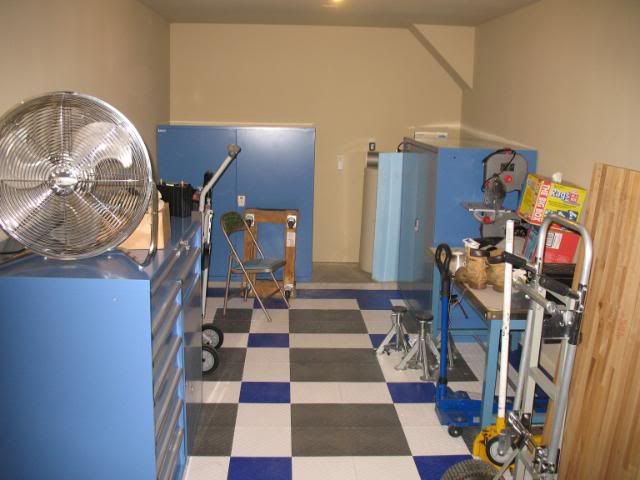

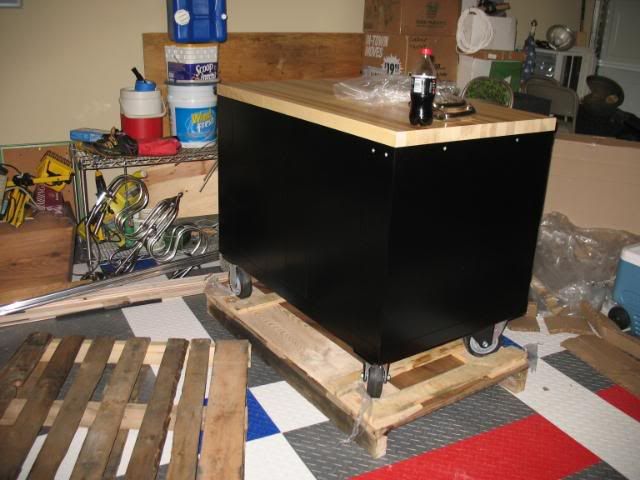

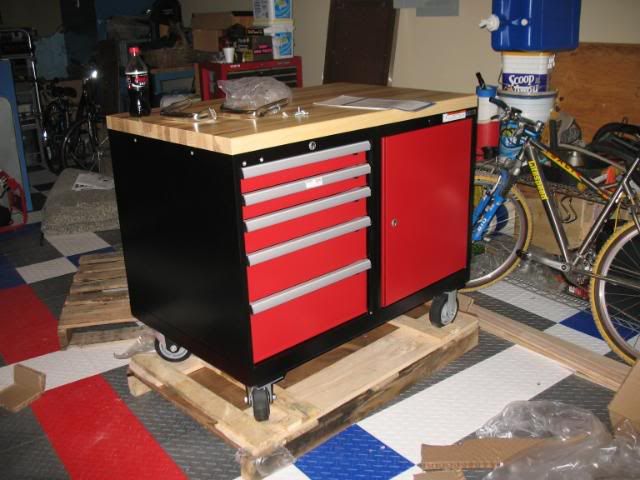

LISTA Cabinets-Pt I
LISTA Cabinets-pt II

That's it for now...see you on the trails.






********

WHAT IS NEXT?!?


Nothing yet...most likely the HO Alternator.

I did purchase Budbuilt's Belly Pan skid plate and cross member.


But due to interference with CBI's Clamp-on Slider mounts, I have to figure out to modify the Cross Over Member.
JFAB and I were talking about what we could do with it.
Once I get that done, I will post up.

Disclaimer: Any modification or suggestions that you take from any of my posts is your responsibility. Me or my family are not liable for any issues or accidents or deaths that occur. Be safe, read, re-read, ask questions and if you do not have the skills find someone that does.

This guide is for information only, and I nor any member of this forum (including the admin, moderators, owners, hosts or affiliates) take any responsibility for anything that may go wrong. Use this guide at your own risk.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 07-11-2014 at 04:43 AM. Reason: Update: Nothing yet....
TEJASYOTA is offline
Sponsored Links
Advertisement

post #2 of 58 (permalink) Old 02-09-2008, 08:37 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Total Chaos-UCA install

After over a couple months of waiting, I was finally able to get some help on the installation of my new Total Chaos UCA's...

My helpers included...
Ross - - thanks for the beer!!!
Adam
Kevin - - thanks for the breakfast tacos!!!!

Key Tools used:
pickle fork, split ring pliers, Ball Joint remover & press and my favorite a BFH!!!

Prior to the disassembly and reassembly of the UCA.

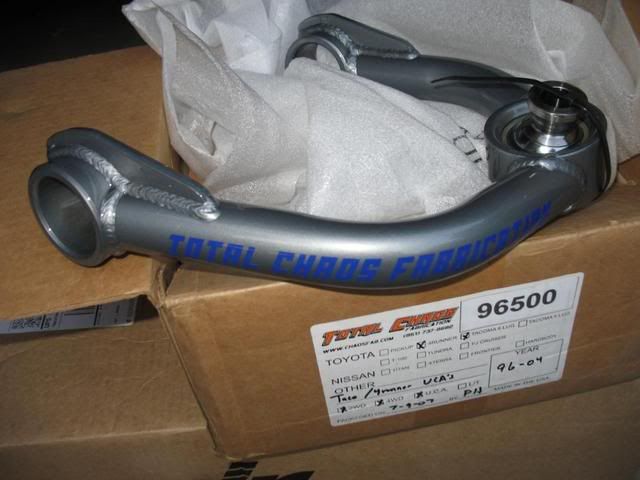

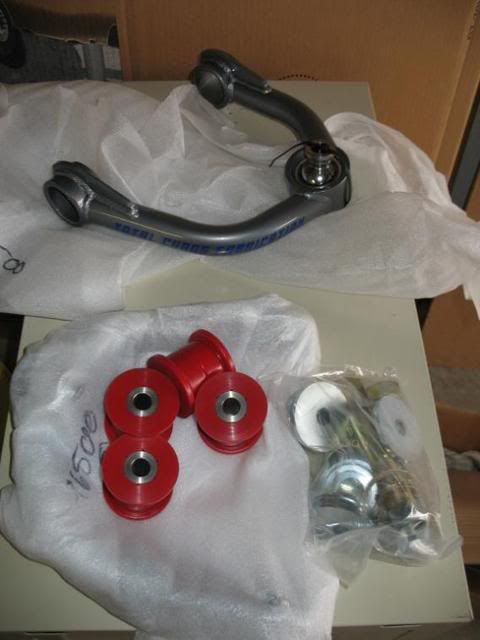

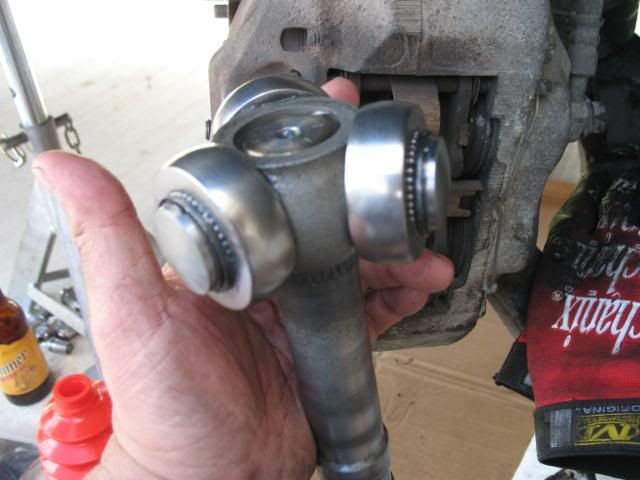

Below is what came with the TC UCA kit.

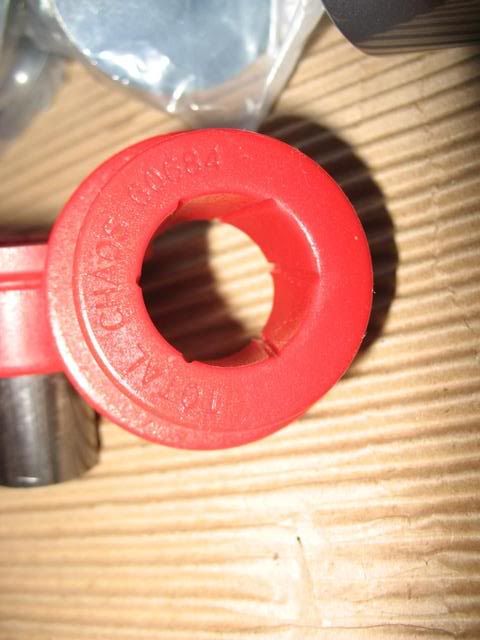

Not sure if you can read the engraving on the bushings...very cool shit.


The following are photos of Ross, Adam and missing is Kevin and I...

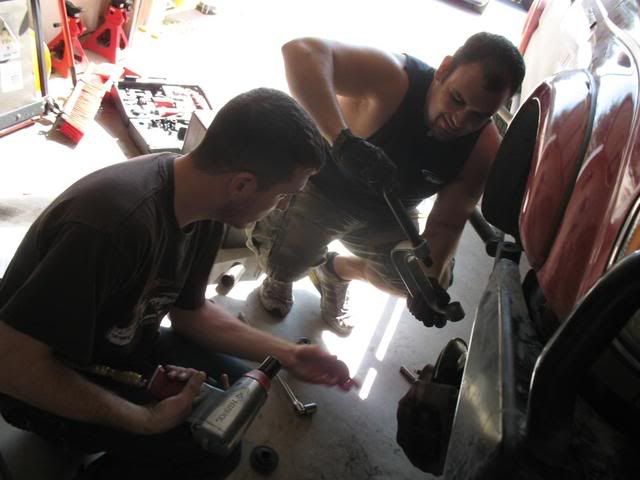

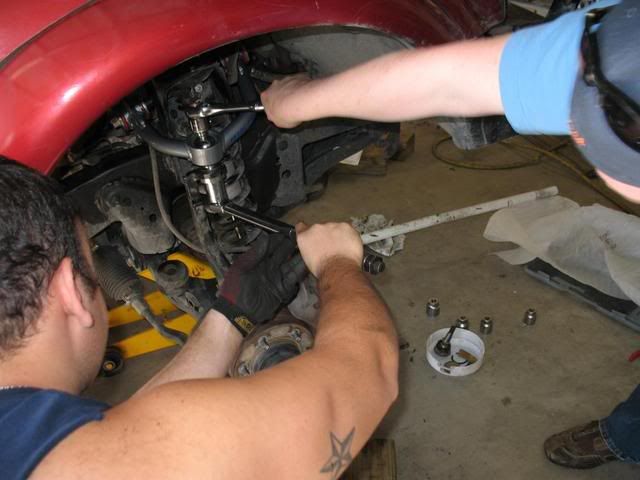

working to remove the factory UCA and Ball Joint.

The installation of the UCA was fairly easy - once you get everything removed...from the battery, the two Airbag sensors (one on each front fender), and the rubber mud flaps on the wheel well; the actual install of the new UCA went well.

Tool Tech Tip - PB Blaster, the best thing to use to loosen a nut.
Do a shot of the PB, the night before and then again a couple hours before the WAT. It will make your life easier.

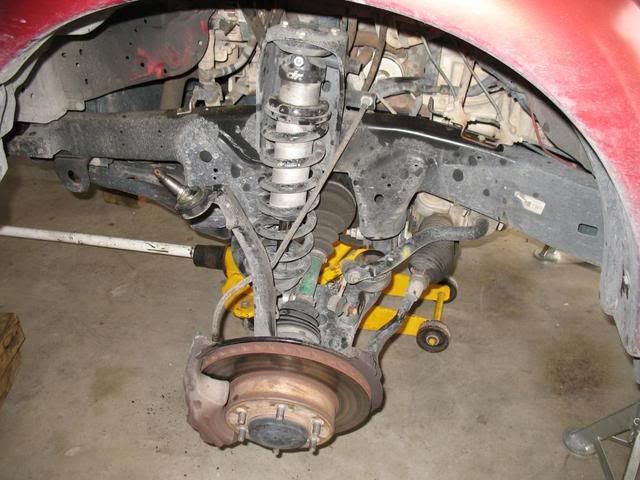

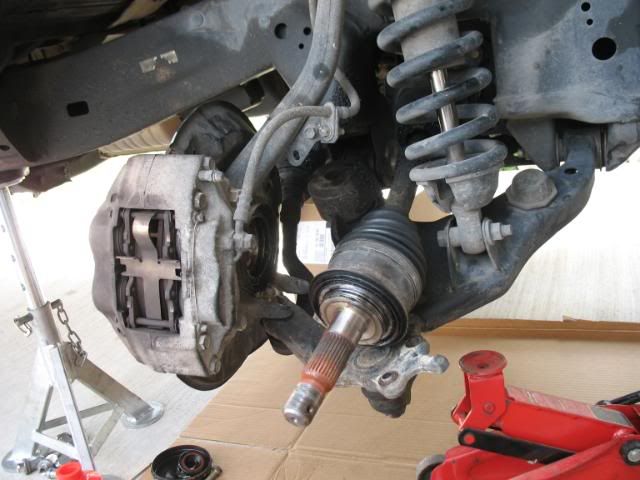

Factory UCA removed:


I guess the longest amount of time spent was figuring out the Ball Joint removal tool (trying different configurations) and basically seeing which set up would allow us to remove the factory Ball Joint.

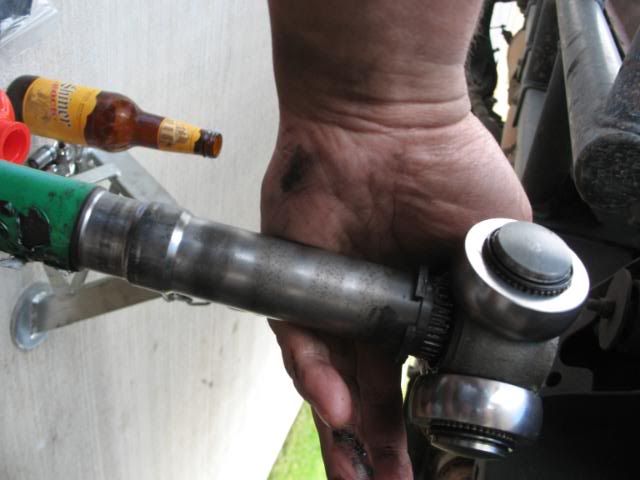

Removing of the Ball Joint...the fun part.

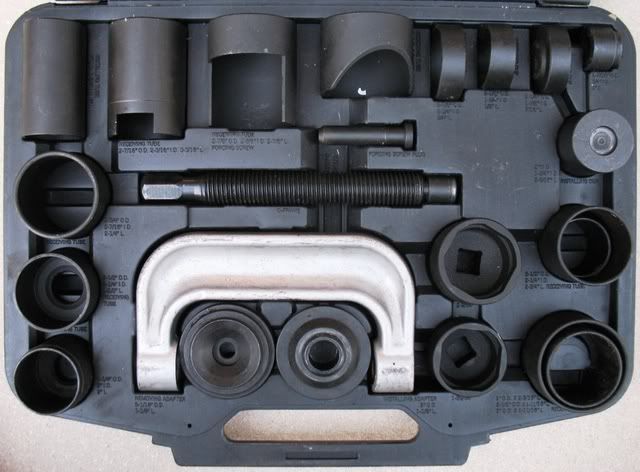

This is what we loaned.









Installation of new bushings for the TC UCA.

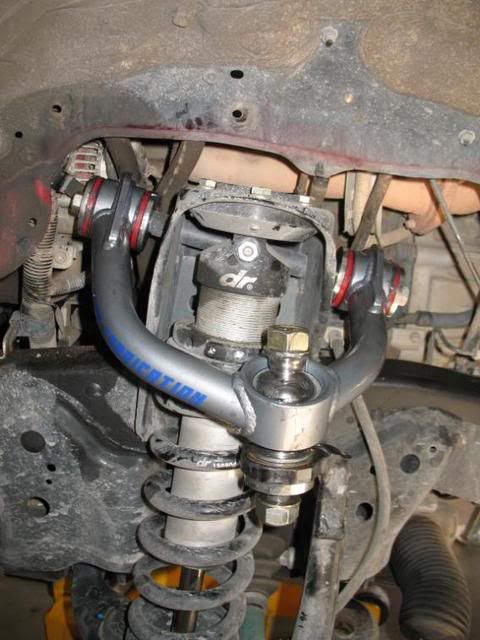

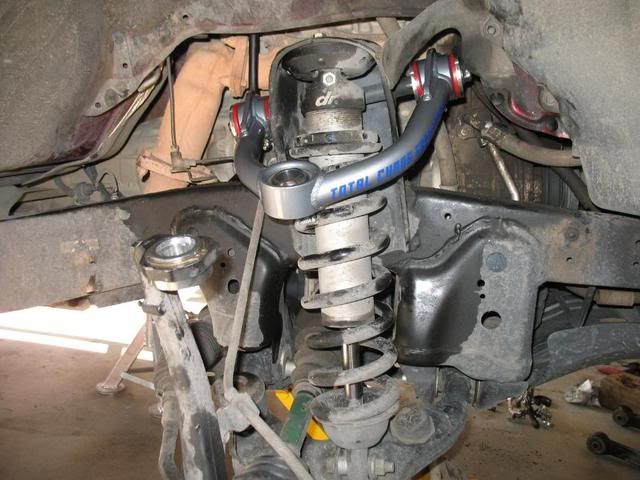

TC UCA - Installed!


The work instructions from TC and all the past UCA installs that were conducted helped me figure out how to remove the factory UCA and install the TC UCA.
We could not believe how easy it was. Below are some links that I used.

Parks Offroad-All Pro UniBall Install-click here.

Parks Offroad-Ball Joint Removal-click here.

TTORA-UCA Install#1-click here.

TTORA-UCA Install#2-click here.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 02-13-2008 at 06:11 PM.
TEJASYOTA is offline
post #3 of 58 (permalink) Old 02-09-2008, 08:44 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Pinch Weld Mod! - - The beat down :)

Yeah I know - why even mention this...
While we were finished the install of my TC UCA, I was wondering - out loud to Ross and Adam, what else can I do...then it hit me - -the pinch weld mod.
Using my box cutter and my favorite tool - - THE BFH!!!
Off I went...

Factory look...


Plastic Trim cut off...

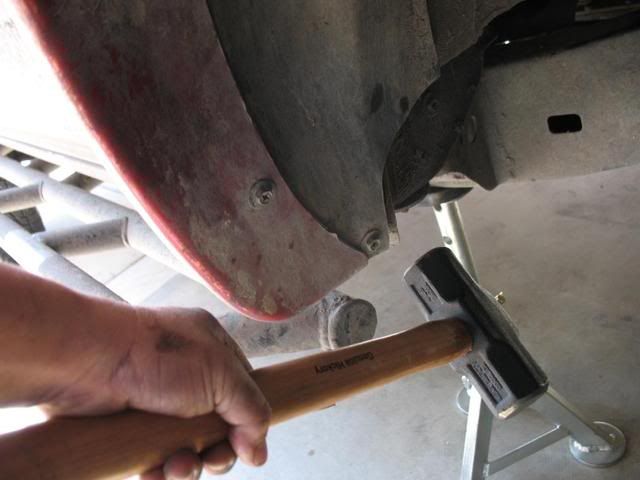

BFH going at it!

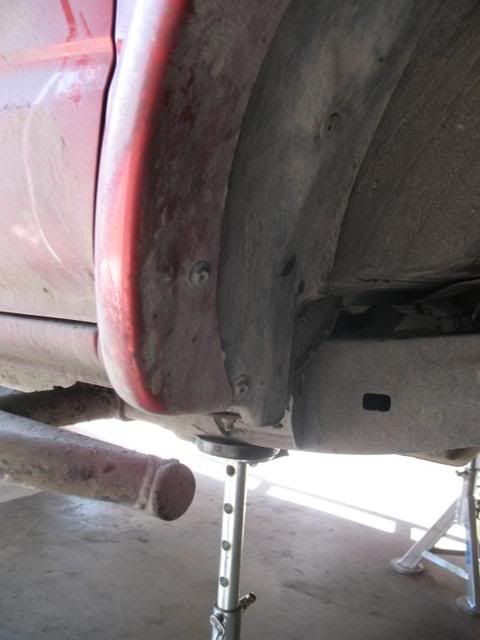

The aftermath of the beat down.


The only picture I forgot to get, was the painting of the now beaten down pinch weld. I will get it later and post it later on.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005
TEJASYOTA is offline

post #4 of 58 (permalink) Old 02-16-2008, 09:48 AM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage

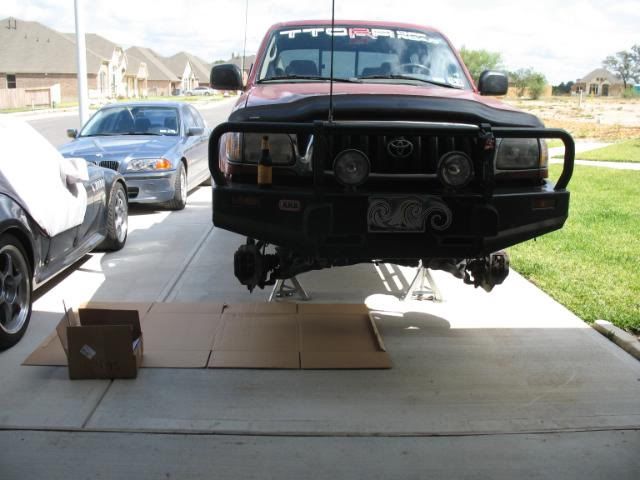

Talking Latest picture w/ aftermarket suspension installed.

I just remembered that i did not post up an "AFTER" photo of my truck.

Before:

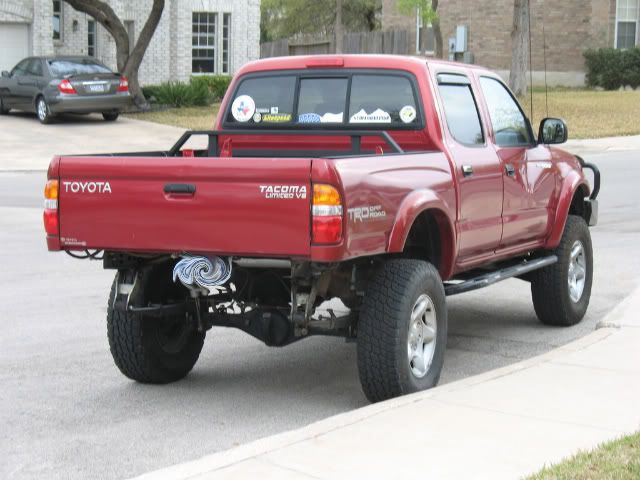

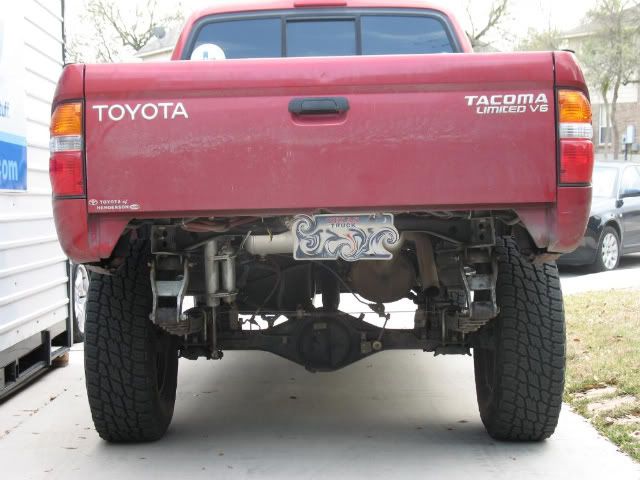

So here she is with all the suspension installed.

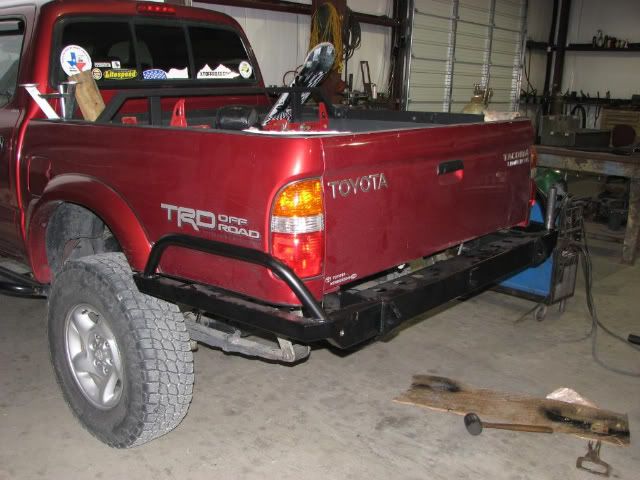

The next project will be the installation of my new CBI Rear Bumper.
Should be installed late Feb.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 05-17-2008 at 06:22 AM.
TEJASYOTA is offline
post #5 of 58 (permalink) Old 03-04-2008, 06:55 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage

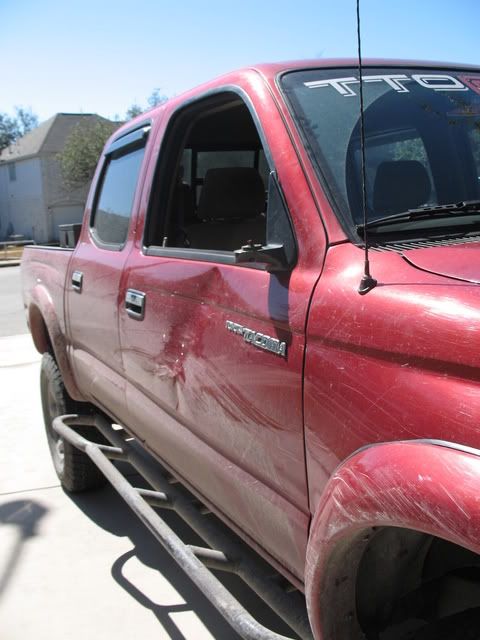

Unhappy Okay, so it began at the Power Lines.

After going up & down the hill at the Power Lines, I saw this clearing and proceeded to go check it out. The photo below is looking down the hill.

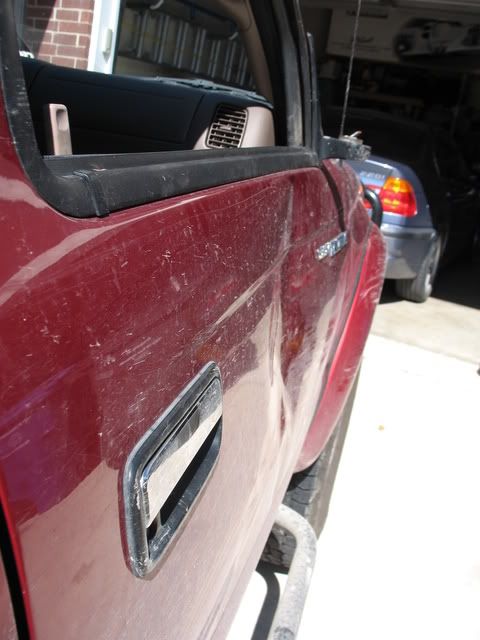

In the end I came out with this little scratch...




The clearing was heading back up hill on a gravel ridden ground cover - off camber and tree line to the right, in the photos you can actually see the angle of the tree trunk on the door panel.




Ran out of traction and had my rig in 4Hi (yep stupid), tried to back down a little to get some better traction, but the truck started to slide to the right and rested against a tree. Stuck and could not go forward or rock back or forth to get out (yep stupid). So the only thing to do - I was by myself (yep stupid) - I gassed it in reverse and ripped the mirror off and dented the door as you see (yep stupid). Had to put some goop inside the vacant hole to prevent leaks!

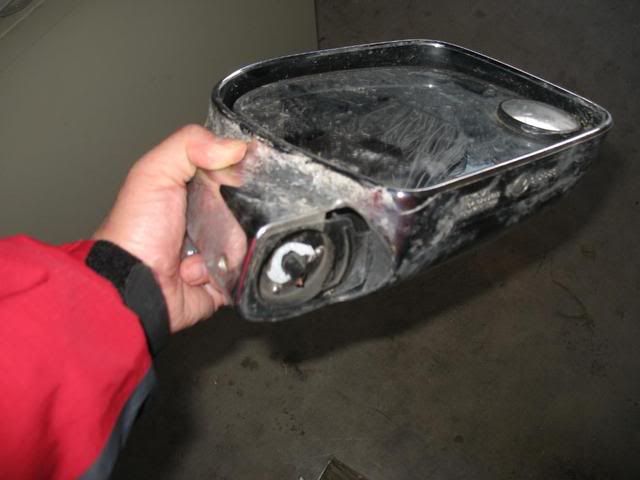

Now I am looking for manual mirrors, I think I found some 2000, that were part of the off-road package and are manual. Mine are chromed and powered. I want to replace it with manual versions.
Waiting for the buyer to send me a photo of the mounting side of the mirror to see if they will work with my truck.

As for the door, I might wait to see if I can find a salvaged Taco to get the door from it. Then convert this one into a half door...who knows....guess I need to pack an axe.

Well, after a couple of weeks, I was able to find replacements off eBay for under $50/each. I opted for the black version and powered, to replace the TRD / Limited versions.

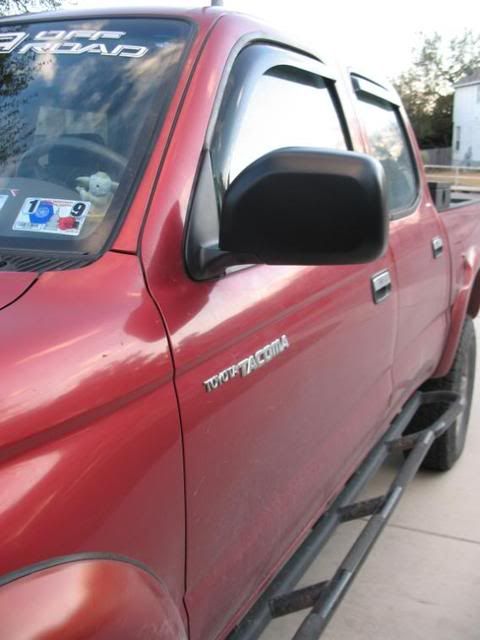

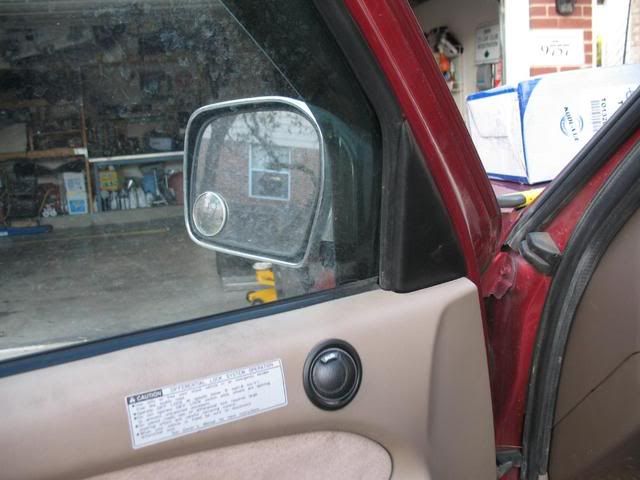

So the following to replace the stock mirrors. The procedure is really quite easy.

Step 1:

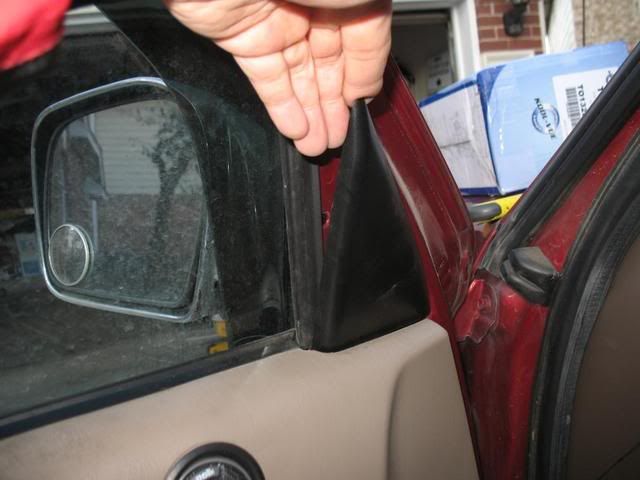

Pop off from the top of the inner appearance mirror cover.


Note it will pivot downwards.


Step 2:
Once loose, pull up and it will remove from the door.


Step 3:
Next unbolt the three nuts (10-mm).


Step 4:
Pull out the mirror.


Step 5:
The wire harness connector can be pulled out from the door easy too.

Step 6:
Hook in the new mirror and feed the connector back into the door's cavity.


Step 7:
Rebolt the mirror.

Step 8:
Reattach the appearance cover.

Step 9:
Step back and take some photos.




Opinion: It has been over 2-months since I have installed these mirrors and I can safely say they are NOT like a great factory replacement.

The big issues is shock absorption from road and wind is NOT very good. You get up to highway speeds and the mirror's glass vibrates so much you can not use it very well.

3 out of 5 star for a replacement.

I might hate this so much that I may look to reinstall my one good factory mirror and find another factory mirror to replace the original busted one. Oh well, live and learn.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 05-17-2008 at 06:28 AM. Reason: 5/17: Opinion
TEJASYOTA is offline
post #6 of 58 (permalink) Old 03-23-2008, 06:54 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Cutting of the FENDER!

The Cutting has commenced!
Sawzall with THE TORCH Cutting blade


A bottle of Shiner


A carpenter's square, tape measure, painter's tape, metal file, door edging and a pencil


Don't forget to wear safety glasses and ear plugs.

After laying out the tape, I used the carpenter's square to give me a good edge to measure down to scribe in my cutting line.


Then using the same carpenter's square I generated my straight line on the marks I did earlier.




Now came the fun part...take Sawzall in hand and go at it!


The hard part was the actual corner of the fender section, I first was using the short 6" blade, but found that the metal structure at the corner was better to reach with the 9" long blade.

After deburring the edges and rounding off some sharp corners with my hand file, I took some black spray paint (Rustolium) and painted the inside and on the cut edge.


I then took some door edge trim and fitted to that same edge (after the paint had dried).


BEFORE:



AFTER:



All this is to get my truck ready to mount my by CBI rear bumper.











Or...maybe I should just bob the bed!


*****
edit: In case anyone is wondering why I cut so much off the rear's corner...look at the bumper's photo below.



The bracing near the shackle mount area, would have been a problem during the install.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 03-23-2008 at 09:15 PM. Reason: Brain fart! ;)
TEJASYOTA is offline
post #7 of 58 (permalink) Old 03-28-2008, 08:57 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking CBI's Rear Bumper-tire, jerry can, Hi-lift, bike CARRIER system

Well it was late 2007 that I placed an order with Steve at CBI.

Options include the following:
Tire carrier
Jerry can carrier
Hi-Lift carrier
Bike rack mount
Powder coat - color black of course.

Steve and I discuss the bike rack mount and he might make the left side a right angle look to incorporate the bike rack mount.
The photo shows an angled look to the tire carrier.
The reason for the bike rack mount - it is to mount my Thule upright carrier.



Forgot to mention that I will retain my bed bar that JFab made for me.
The photo is how I currently transport my bikes to the trails.

The top of the bed bar should be the same elevation as the CBI bumper, once it is installed - - I hope!

Also the tire will be mounted lower than it is shown on the photo.
The tire, jerry can and Hi-lift will be able to be locked with a padlock.

It was scheduled to be completed either late January or early February (more likely). It did arrive mid-February.

*****
Well my bumper arrived on a pallet...so off I went to pick it up at the shipping depot.

Check this shit out!





This is after I had removed the shipping cardboard that CBI wrapped around my bumper.

I then removed the bumper off my truck (both new and old).




*****
Well...after ordering this back in 2007! HERE IS MY NEW REAR BUMPER!
The total install did not go super smoothly...I will detail it below.
But enough said, it is on and WOW!

Well, early this week I called Jayce (JFab) at San Marcos to see if he was free this Friday afternoon and luckily for me he did not have any jobs going on.
So today, I had a dentist appointment and soon after that was completed - no cavities!

I was off to see Jayce.



First thing I did was to remove the bumper from by truck and then grind off the powder coat paint from the frame.


ISSUE #1:
We had to cut out new "thinner" 10-gauge steel plate.
The 1/4-inch steel plate that came with the bumper would not wedge between the bumper inner walls to the frame's outer walls.
This was due to manufacturing tolerance between CBI and Toyota.
We had a difference up to 1/4" at one end.
So since we could not spread apart the bumper to slip it onto the frame and plates...we made new ones.





We also chamfered, the leading edges of the bumper to allow it to slip onto the new plates...and guess what IT WORKED!
So after that Troy (Jayce's handy dandy welding mate) went at it!




After that was completed, we ground down the welds flush, again to aide the bumper to slide on easy.
Oh yeah - a fresh coat of paint went on too.
And Lordy Lordy, then with a little push, the bumper was on!


Next to be installed was the tail gate.


Finally stand back and view the line up.


Now to add the equipment - - first the spare tire...yeah I know, I need new wheels and tires.


ISSUE # 2:
Next was the Hi-Lift...oops..the bolts do not line up to the holes already on the Hi-Lift!



Now, I see that the body of the Hi-Lift holder is too low and it interferes with the main body of the Hi-Lift, even when the lift is all the way to the base. Looks like I will need to get a grinder.



Even though the upper bolt is a floater, it does not float vertically enough and the bottom bolt was short from clearing the hole.
The distance from the top of the plate (that the Hi-Lift rests on) to the center of the bolt is 11-3/16"

I think I will stay with JFab's original Hi-Lift holder, until I can get this one modified to work.

Jerry can holder - mine is plastic and this one works with metal versions.
So I either need to get a new jerry can or modify this one to accept the plastic versions.
I am leaning towards modifications.



ISSUE #3:
I then tried to place my Receiver Shackle Bracket into the receiver...the hole that is used to located the Hitch Pin - - did not line up!
The shackle's body bottomed out against the receiver housing, thus preventing the hole to line up properly.





I have verified that the hole's location from the face of the bumper to the hole's center is measuring 3.25"
My Reese Tow Hitch measures 2.5"

I then took the Receiver Shackle Bracket out and placed it backwards, inserting from the opposite side and the hole lined up and the Hitch Pin went in.
Looks like the Receiver housing was welded backwards...

I will need to find a new Receiver Shackle Bracket to replace the one I have.

Overall the construction of the Bumper is STOUT!!!!
When the tire was mounted, we tried to rattle it - - it did not move!

The only odd thing, which I never thought to ask about was the pivot pin for the tail gate...Steve at CBI made it out of a solid piece of round steel bar with grease grooves. Then the pipe tubing would slide over it and it had a grease nipple on it. We were skeptical at first, but after loading the tail gate on, it swung really well. The only concern I have on this part was the lack of a cover that would protect the area from getting water in it or grime.
I will be looking for a plastic cover or a big ass rubber to cover it. I will post up the cover, once I find one.

My thoughts so far -- the drive home was smoother...the extra weight did make it less BOUNCY! It also level out the truck a little more...I will verify the heights of the truck tomorrow too.
The side guards are super beefy!
I can't wait to go wheeling with my truck now...just need tires and wheels!
Soon after I close on my new home, I will be looking for those next items!

MY HAND GOES OUT TO STEVE AT CBI for a killer Bumper!!!
I will email Steve tomorrow to inform him of my issues and the one big oops!

MY OTHER HAND GOES OUT TO JAYCE AND TROY for staying the over to work on my truck!


Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 03-29-2008 at 04:48 PM. Reason: Brain Fart#1 / Add photos of issues.
TEJASYOTA is offline
post #8 of 58 (permalink) Old 03-29-2008, 04:36 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking LitePLATE & Finish Bolting the bumper up.

I wrote Steve this morning, telling him about some of the issues that we found during the install...well no more than a few hours later, he had emailed me back!!!!!! Talk about response time!

I confirmed this morning and afternoon, that what Troy, Jayce and I saw was happening. Anyways, I gave some suggestions on future builds and a couple reasons why it happened.

For the persons that were interested in why, there is a hoop on the top of the Tail Gate ... here's why:





This will be used to mount my Thule up-right bike carrier.

Also today, I added 4-more nuts and bolts to the bumper and also added a LitePLATE.

Update from early 2012:
My LitePLATE stopped operating, I checked and it was the PCB that is encapsulated that failed. Ran a meter at the wires and received no reading.
Meaning I pulled some of the jacket off the wire near the epoxied area to gain access. To make sure it was not a wire/connector issue.

So I have since removed it and tossed it... WASTE of MONEY.
i even emailed the makers with no response.
SO I WOULD NOT RECOMMEND this product.




I first took my nibbler and notched out an area to clear the wiring to the LEDs.




I then cut some left over door trim (that was used for my fender) and added to the edge for more protection.







I then zip-tied the quick disconnect to the Bumper's Tail Gate.


Next I wanted to determine which color wiring I need to hook up to the Trailer Harness Converter.


I found that the following works for this Hoppy Converter:
GROUND: Black (L-P) goes to the White (Converter)
BRAKE: Green (L-P) goes to Brown (Converter)
TURN: Red (L-P) goes to Green (Converter).



And here is the end result.






Next was finishing bolting up the bumper and all nuts / bolts has Locktite-blue on the threads.

Size used: (4) 1/2-13x2 inch Grade 8 nuts and bolts.


The holes are used when I had my Reese Trailer Hitch.





Here are some more overall photos.











Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 01-06-2013 at 07:30 AM. Reason: LitePLATE FAILED
TEJASYOTA is offline
post #9 of 58 (permalink) Old 05-03-2008, 03:54 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Rear axle - Breather replacement

Well...I been wanting to change out the breather that is located on the rear axle assembly...I read up on different versions that people have done, mainly the gas line to filter and having it located either at the gas fill door or in the engine compartment.

TTORA-Breather Mod-click here

YotaTech-breather mod-click here

YotaTech-Jackson breather-click here

I was really close of going that route...but I remembered seeing a breather replacement by Trail Gear-click here.
It is called the Creeper-Breather = $19 (April 2008).


No lines to run.
  1. Just clean the area around the stock breather of dirt.
    - you do not want anything to fall into the differential that could cause harm out on the trails.
  2. Remove the old stock breather.
  3. Install new breather brass nipple
  4. Slip-on the rubber bellows - make sure the retention clip is already onto the bellows.
  5. Sit back and admire what you did less than 10-mins!

Photo below: Three items from Trail-Gear (brass nipple, rubber bellows and a retention clip) - tools required is an adjustable wrench or 14-mm wrench and pliers.


Photo below: stock breather on axle assembly


Photo below: stock breather removed.


Photo below: brass nipple installed...note DO NOT tighten all the way down flush..the thread is a pipe thread and allow about 1-thread exposed.


Photo below: T-G Creeper Breather installed.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 09-07-2013 at 01:23 PM.
TEJASYOTA is offline
post #10 of 58 (permalink) Old 05-03-2008, 04:05 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Hi-Lift Mount Modification to CBI Bumper

Quote:
Originally Posted by TEJASYOTA View Post
...ISSUE # 2:
Next was the Hi-Lift...oops..the bolts do not line up to the holes already on the Hi-Lift!



Now, I see that the body of the Hi-Lift holder is too low and it interferes with the main body of the Hi-Lift, even when the lift is all the way to the base. Looks like I will need to get a grinder.



Even though the upper bolt is a floater, it does not float vertically enough and the bottom bolt was short from clearing the hole.
The distance from the top of the plate (that the Hi-Lift rests on) to the center of the bolt is 11-3/16"

I think I will stay with JFab's original Hi-Lift holder, until I can get this one modified to work.
Well while visiting JFab in San Marcos, I borrowed his grinder and removed the current mount that CBI had for the Hi-Lift...the portion I removed was what was holding the two carriage bolts. I left the main body in place.
Basically, I drilled two new holes and used nuts, bolts and washers to now hold the Hi-Lift in place. The thread size is 1/2-13.



In the near future, I plan to machine two large spacers to remove the washers stack that I used. With a larger spacer, I can use a longer bolt and drill a hole into it for a pad-lock. But that will be later on...I am happy that this works.


Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005
TEJASYOTA is offline
post #11 of 58 (permalink) Old 05-10-2008, 07:44 AM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Updates

To keep all my mods on one thread location...I will now include the items I mention on the first portion of this Garage Build...

First up is my most excellent Tool Box by TTORA-TX Member Jayce (JFab).

Posted on January 20, 2006
https://www.ttora.com/forum/showthread.php?t=25350

Cost at that time $500 for the box, bed rail and bed bar.
Gage of steel = 16 GA
Weight = unloaded I can lift in and out by myself.
Size = 58.5 Wide x 14 Long x 10.5 Deep
Powdercoated Black.

Today I went up to JFab's shop in San Marcos, Texas to view and install my brand new custom made tool box, bed rail and bed bar. What can I say the workmanship is FIRST RATE! The install was fast and straight forward. It all fits like a glove. The box is mounted on a bed rail and has tie downs at key locations. In addition there is a Bed Bar that has a mount for my Hi-Lift. The whole unit was powdercoated black with a rough texture. The box was spec'ed by me to have a shallow depth, so I could get things in and out easily. Plus have a space below the box, makes it easy to slide long things in place with out it hanging out of the bed too far (i.e. 2x4's). I plan to mount lights on the bar in the future and soon mount my bike rack mount on it. My bike rack only holds the forks of the bike. A few holes here and there for the mounting bolts and a few more photos and thank you's and off I was with new goodies in the bed of my Yota!

As I mentioned in a previous post, I learned of JFab's shop and tool box on a different post where he had his old purchased box (made of steel too) was broken into and all his tools were swiped! After a few emails, I learned his shop was in San Marcos Texas and only a few miles away from my place of work - - BONUS! I drove up to meet him and discuss his box. Well as you know I was sold. We were always in touch via email or phone for any details that he thought I need to know or have my truck to see if things are fitting the way he designed it to be. Well the photos and my words can not express the excellent work, now I need to think of the things I want to place into the box for safe keeping. Below are a few photos, but I will have the write up and more photos on my website for everyone to view.

So if you want a killer tool box or bed rail or bed bar, I highly suggest you to give Jfab a private email for a quote. But if you want to view this piece of art, drop me a line and if you are in the San Antonio, Texas area, we can meet up near by!

THANKS AGAIN TO JFAB for a GREAT PRODUCT!


EDIT: I had to update the pic, because I have closed down my old website (z3power.net).

Here are a few photos of Jayce's tool box that he made for himself.






The following is my build and final product.






This is how it it bolted to the bed rails.
The nuts are welded to the bed rails... and the bolts are unbolted from the inside of the box.
This makes it very difficult to steal.


The top is held up with just a square post.


I originally used the Bed Rack to transport my Litespeed Tsali


Or at that time my Hi-Lift - before I bought my CBI bumper


I now use it to hold my shovel and axe when I wheel.
Note that the Axe's edge faces downward when I actually mount it.




The only maintenance I have done over the years was lubrication on the hinges and knocking off some paint that has broken off at the hinge area (due to heavy use). Overall the powder coat has held up over the past 6 years very well. It can be repainted easily.

This is THE BEST tool box anyone can purchase.
I highly recommend this.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 08-20-2013 at 05:38 PM.
TEJASYOTA is offline
post #12 of 58 (permalink) Old 05-10-2008, 07:50 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking CBI Heavy Duty Clamp-on Sliders

Second up is my CBI Heavy Duty Sliders.

Posted on December 26, 2006

edit: Adding this hyperlink from TTORA member Crazy Geologist. He has compiled a list of great information and manufacturers.
So before you deciede on sliders, check out his thread.
TTORA - Slider information - click here


Cost at that time $500 for the box, bed rail and bed bar.

Well after waiting for my sliders from CBI, who by the way ROCKS! , they arrived via DHL, who by the way SUCKS! , arrived 4 days late and to the WRONG ADDRESS!!!!!!
It was sent to a home to the same sub-division, but 2-blocks away!

Well after dragging it home, I will plan to install it tomorrow or the next day.
From the photo you can see how LLLOOONNNGGG she is. These sliders are way wider than my Z3!!!



When I unwrapped the sliders, I thought for a second to see if I could mount them onto my Z3, unfortunately, as you can see the length of the sliders would hit my tires, plus the height of the sliders is greater than the ground clearance of my Z3. My Z3's ground clearance is a stagering 3-inchs max. Oh well, guess I will have to mount them onto my truck as planned.


Required tools:
Electric Drill
9/16" drill bit
12-mm socket head or wrench
11/16-inch and 5/8-inch socket heads & rachet
11/16-inch and 5/8-inch open-end wrenchs
Long Stem Straight Screw Driver
Floor jack
Two adjustable car stands
Hammer
Blue LOCTITE
Safety Glasses

The installation was done completely by myself. The amount of time it took was 4.5-hours. It would have been slightly easier if I had an extra set of hands, but it really is not totally necessary. THE ASSEMBLY STEPS SHOWN BELOW ARE FOR THE DRIVER SIDE ONLY and the underside was almost free of mud & debris.

Steve verified that the current angle of the sliders and Clamp-ons would fit the 2001 Double Cabs with no changes other than the overall length.

I also had Steve paint the sliders the color black that you see here.
Step 1) Unwrap the sliders and NOTE the locations of the Nuts, bolts and spacers. The bolts and spacers for the FRONT of the sliders are LONGER than any other. The reason for this is that the frame's box section near the transmission cross beam is wider than the sections as it goes towards the rear. Also take note of a seperately baged of self taping screws and TWO short spacers. The screws will be used to anchor the sliders to the frame and the two short spacers are used to help prevent the brake line and emergency brake line from kinking.


Step 2) Unscrew the bolts for the brake lines and emergency brake cable. The reason for this is to allow the slider's Clamp-on's to slide between the frame section and the brake lines and e-brake cable.

Step 3) Using the screw driver, you will need to dismount a the brake lines from a plastic holder, that is on the frame.



Step 4) Using a floor jack, place the slider (mid-way) Clamp-on section at the head of the jack (I should not need to tell you to make sure you know which way is front and rear for the sliders - - right?). One thing, when mounting these, place the forward most Clamp-on behind the transmission brace. Butt it up to the weld joint - as close as possible.


Step 5) Slowly position the floor jack and slider under the truck and start pumping.


Step 6) As the slider gets near the frame, stop and visually see if you need to reposition any of the Clamp-on sections, so it cups the frame as shown in the photo.

Step 7) Once all of the slider Clamp-on sections is engaged onto the frame, pump so that the slider goes up another 1-2 inches and stop.


Step 8) This time you need to use the screw driver to help pull the brake lines away from the frame, so that the slider's Clamp-on will slide between the tubing and the frame. I suggest that if you are doing this install by yourself, pump the jack a few times and then visually inspect to ensure the brake tubing and any other item is properly positioned.

Step 9) Once you have fully pushed the sliders all the way into the Clamp-on, release the floor jack, so the head will drop a couple inches below the Clamp-on. Move the floor jack over and take one of the car stands and position it under the Clamp-on that the floor jack was at.
Step 10) Take the floor jack and position it at one of the far ends of the slider's Clamp-on. The reason for this is to help "walk" the slider onto the frame and allow the Clamp-on to bottom out onto the frame. You might need to use your arms or your foot to help ease it in.

Step 11) Continue this on the oppersite side and then place two car stands to keep the sliders up in position.

Step 12) Take the floor jack and go to one end of the slider, and apply pressure onto the Clamp-on. From here you need to now modify Four of the spacer tubes, to make it easier to slide the bolts through the set of holes on the sliders. The reason for this is that the frame's height on my truck varied and this variance caused a mis-alignment of the bolt holes, when I was trying to bolt the unit on. This only happened on the two middle Clamp-ons, for both sides, the rears and fronts were fine. Below is how I did the modification of the spacers.

Step 13) Find a hard edge, maybe a concrete edge of the driveway (which I used) or some other very hard surface say a table vice clamp.

Step 14) Take the hammer and a bolt and spacer and place the spacer all the way to the head of the bolt.

Step 15) Using the hammer, start pounding from the head side of the bolt (see the RED "V"). This will cause the spacer to deform around the bolt. Because the bolt's threads do not go all the way to the head, the threads will not be damaged, unless you miss!


Step 16) Do this ONLY ON ONE EDGE of the spacer. Continue the pounding until the end of the spacer. The spacer should look OVAL like this when you are completed.

Step 17) Now it is time to install the nuts, washers, bolts and spacers. Starting at the same location as your floor jack, partially slide the nut with the washer through the first flange of the Clamp-on. Then you will need to take the spacer and thread the bolt through it and then the other Clamp-on flange (view the diagram).


Step 18) Before threading on the nut, I used some BLUE LOCKTITE, to have another level of insurance that the Nut will not back off, during one of my wheeling trips.

Step 19) Continue this same to the other mating bolt, washer, nut and spacer on the same Clamp-on.

Step 20) Once completed, lower your floor jack and go to the next Clamp-on and raise the floor jack to apply pressure to the bottom of the Clamp-on.

Step 21) Repeat the same bolting of the Clamp-on. Do this for the remaining Clamp-ons for the slider.

Step 22) Once completed, the next step is to drill and install the self-tapping screw. I took and positioned the floor jack at the middle of the slider and raised the truck a couple inches and positioned floor jacks at the ends of the slider, but NOT on the actual Clamp-ons. This is to give you some easier access to drill the hole underneath.


Step 23) First using a High Speed Steel drill bit of 9/16-inch, using the hole provided at the BOTTOM of the Clamp-on, I drilled a hole.

Step 24) Take the self-tapping screw and engage it into the hole and then remove it.

Step 25) Take the BLUE LOCKTITE adhesive and apply to the threads of the screw and re-install and bolt it down tight.


Step 26) Repeat this process for the remaining Clamp-on sections.
Step 27) Now it is time to finish the job by reattaching the brake line and e-brake holders to the frame. Using the spacers provided place them BETWEEN the bracket and the frame.


Step 28) One thing that I found was on the forward most brake line, even with the spacer installed, the brake line was rubbing against the end of the bolt. The brake line bracket started out as a right angle bracket, but I bent it to 135 degrees as shown.


Step 29) Also you will find, at least for my truck, that the brake lines that were removed from the Plastic Holders will not snap back into the proper locations as before. This is OKAY. Now that the HARD side is completed, the passenger side is way easier, because there were nothing to remove or modify from the truck.

Step 30) Once completed, check all bolts and allow the LOCKTITE to cure over night and then go out and wheel that SUCKA!

CBI Install on TejasYOTA




My thanks to Steve at CBI for making a quality product and painting the sucka!

One last note, I did add some grip tape on the outter runners so that I can climb around on the sliders when they are wet.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 12-11-2009 at 05:18 PM. Reason: Hyperlink on sliders
TEJASYOTA is offline
post #13 of 58 (permalink) Old 05-10-2008, 07:56 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking CBI Weld-on Frame Reinforcement Plates

Posted on May 20, 2007

Well my CBI Frame reinforcements are installed - - after a month of not able of hooking up with JFAB.

The CBI frame reinforcement plates cost $79 + shipping.

Well some things of note, the longest plate is too long , I believe these were made to fit Tacomas (reg, extra, DC) up to 2004? I will check with Steve of CBI on this. Anyways, the actual install was not hard at all. We had to first cut the long plate shorter, then on the driver side we had to notch a corner to allow it to fit around a bracket. That same bracket is not on the passener side. But there are mounts there that looks to allow a bracket to fit there for our over-the-sea HiLux friends.

The first thing of business after jacking the truck up and pulling the wheels off, was to remove the paint of the frame, let me tell you that paint is THICK and very tough to remove. I first tried it with a wire brush on a die-grinder and that took forever! I then switched to a adbrasive disk and that did the trick.

Jayce cut the plate and notched it.



BEFORE WELDING - - We covered the fuel tank & fuel line and electrial wires with wet rags, to keep things a little cool
He clamped on the plates to tack weld the plate into place.
He then filled in the holes.



He then stitch welded about 5-inches at a time, at different places. He would say do one end of the plate, then switch to the oppersite end/side, to allow the original weld to cool down. This does two things, one, it prevents excessive warpage to the frame and plate. Second it keeps the fuel tank from getting too hot.



One thing that made sure was that when welding the two plates that are adjacent to one another, he left at least an 1/2-inch gap. This way he is welding the plates to the frame and not to the plate. So in the end, the weld will form a V-shape valley.


After everything was welded and scrubbed down of scale and burnted paint, I painted it to prevent corrosion.


The only thing that was not expected, was the last plate that goes towards the tail end of the frame was not installed. Because my current set up has the stock bumper and tow hitch. This set up would make us drastically cut up the reinforcement plate to make it work. So I opted to hold off until I change my rear bumper out.

Many thanks goes to Steve for an excellent product and to Jayce (JFab), the master welder!

Note that after talking with Steve at CBI, it was determined that the plates that was shipped was NOT for the Double Cab Taco, but for the extended cab version.

One last note the third plate that is welded onto the end of the frame was added when I was installing the CBI Rear Bumper.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 12-28-2008 at 11:58 AM.
TEJASYOTA is offline
post #14 of 58 (permalink) Old 05-17-2008, 09:41 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Hoes EX CO, Alcan 8s & Timbren-installed

Here is the detailed install of my suspension that I mentioned in the first post.

Post date: Oct 7, 2007

Below is my famous sticky on IFS suspension, discussing how I thought about and determining how I ordered my suspension system.

Read, answer and learn.

Quote:
After a year of wheeling & DD'ing for nearly 80,000 miles: it was time to do some serious upgrading of the suspension, I have been keeping tabs and reading the so many threads on different messageboards for the different systems out there.

Below are the questions and links I used to read and understand the different systems and opinions.
1) How much are you willing to spend
2) What type of off roading are you going to do
3) What type of driver are you
4) Is your truck a DD or trailer rig
5) Do you plan to haul stuff and how much
6) Did your wife/gf approve the purchase


Use these links below to read and understand....

TTORA-the BEST Newbie asking the right questions on suspension - click here.

The following is a post on Toyota Nation by toku58
Lifting you truck! Things you need to know! - Toyota Nation Forum : Toyota Car and Truck Forums - click here


CustomTaco's good info for off roaders - click here.

Parks Offroad.com: Installation and opinions for Toyotas (Coil overs & Drop Brackets) - click here.

4Crawler.com: Body Lifts - answers by 4crawler.com - click here.

4Crawler.com: Drive train ground clearance trick - click here.

YOTAtech.com: A Beginner's thoughts.... - click here

TTORA: Tacoma Modification Articles -click here.

TTORA: Lift - - the question - click here.

TTORA: Leaf spring opinion poll - click here.

Stengel Brothers Inc. Factory Leaf Spring Info - click here

TTORA: Cams vs Hoes - mandatory reading - click here.

Toyota.off-road.com: CO-Shock comparison - click here.

Downey-Off Road: Click on to Suspension then the model year of your truck - click here.

TTORA: UCA information - click here.

TTORA: Shackle's anyone? - click here.

TTORA: Shackle's anyone part II? - click here.

TTORA: Timbren Bump Stops - click here.

I will state this, I too thought of going the low cost way of AAL, spacers and shocks...but after really thinking of it and what I want to do with the truck - I held off on the purchase to save up the money necessary to do my truck right. I am one of the guys that hate to do things more than once. If it takes a little inconvenience for a little bit of time to get real capable stuff - - it is worth it for me for that pain of waiting.

That should be it...but read, learn, listen and if possible, ride with some guys that have different systems to see how they like it and how it handles.

I opted for the coil overs and leafs...not yet ready to do the SAC, though maybe one day I may do it...after researching for close to 6-months, I picked Donahoe shocks, Total Chaos UCAs, Timbren Bump stops and Alcan-8s as what will grace my under body!

EDIT: In case you are wondering about "airbag / airlift suspensions"
Here are some links that will help.
There are two main players - Firestone and Airlift.
Airbag/airlift systems are for mainly used for heavy hauling purposes.
Or level loading of any loads you may be hauling or pulling on your tow hitch.

TTORA: Airbag/Airlift suspension systems I - click here

TTORA: Airbag/Airlift suspension systems II - click here

TTORA: Airbag/Airlift suspension III - click here

Internet Truckspring.com - Q&As - click here

Google-Air Bag Systems vs Helper Springs - click here

Rear Shock setup.


Rear leafs with bumpstop


Front Coil-overs with UCA


*****
Well yesterday, Adam and I installed the majority of my suspension.
I will not bore you with the details of the install, because WE DID NOT TAKE PHOTOS. I wanted to get the stuff installed. There are better write ups out there, but there were some items that should be noted for future people that are looking to install an aftermarket suspension system.

So here goes.

We started the install from the rear first, figured it was the easiest.
The only thing to note was I rerouted the e-brake cable, that is nested between the gas tank's mounting strap to be located outside of it and downward. I then added a plastic wire sheath around it to help protect it from rubbing, I might change that out later with something more durable or thicker.
Stock Location of E-brake cable:


Rerouted E-brake cable:


Plastic sheath around E-brake cable:


During the install of the extended brake line, it was a bitch to install the factory clip into the new brake line. It seem to take forever!
Tech tip is to remove the brake line's bracket that is mounted to the frame rail. Makes it slightly easier to tighten down the line and hook up the clips.
Stock Brake Line:


Extended Brake Line:

DON"T FORGET TO BLEED YOUR BRAKE LINES!

Here are the remaining photos of the bump stops, leafs and shackles installed.
For the rear shackles, I opted to have the grease ports inboard of the truck.




Installing the new Timbren bump stops was easy. To align it to the bottom centering bolt of the leafs, you will need to use a jack to dry cycle the suspension to see where it centers. On my rig, the bumps made more sense to be located rearward.


Other than that, all other components went in with out much fuss.

On to the front suspension.
I opted to not install at this time my TC UCA's and to wait until my rear Hoe Reserves Shocks arrive, which is still on backorder since Aug 2!!!!

After removing the wheels, we used the bottle jack to force the suspension system downward. This was to allow us to remove and install the shocks with no hassle. This is WAY easier than it should be.


The Timbren bump stops went in first. We picked the front factory stops to be replaced, there are two factory bump stops on the lower control arm. There was nothing in the installation instructions to say which one to replace.

I just finished communication with Wheelers and the location I stated for the FRONT Bump Stops for the Timbren should replace the factory bump stops that are CLOSEST to the front doors!!!!!
I had mine installed wrong!
Note, no where on Wheeler's or Timbren website or instructions state this...
I will be fixing mine tonight and will post a pic showing how it is installed.


Photo below is when I had the stops mounted in the front.


Photo below is when I had the stops mounted correctly in the REAR.


Note you leave the factory bumpstops in the front of the Timbrens.
Also note that, I have removed my swaybar since I took this photo.

One thing to note is the two sized bushings that are zipped tied to the Hemi of the shock needs to be placed in the correct location.
The shorter bushing (on the left) is always located towards the front of the truck, while the longer bushing (on the right) is always located towards the rear of the truck.


Bushing's installed (this is from the driver side of the truck):


Measurements taken from Ground to bottom edge of fender flare.
As for dimensions:
Past Front Measurement = 34.5-inches
Past Rear Measurement = 35.5-inches

New Front Measurement = 37-inches (with 1.125 inches of thread showing).
New Rear Measurement = 37.5-inches (with stock shocks - - for now).

I will leave it like that for now, until I get the UCA and rear shocks installed, then I can crank up the front shocks higher.
THANKS TO ADAM for helping me!
ps: the exhaust was cut earlier by yours truly!

****Waiting, waiting and more waiting****

Well after well over a month of waiting - - since August 2...the last piece of my suspension arrived!


Off goes the rear shocks...


On goes my new Donahoe Signature Reserves


Then tighten down everything.


If you are wondering why the driver side rear shock's reserve is on the side of the main body, it is due to the pressure sensor of my air tank, was in the way. It will have to stay that way, until I get a pressure sensor that is shorter.

I made sure that the reserves cylinders' supply nipple to be at the base of the main shock. This way, if the shock bottomed out, there would a low chance of the nipple or cylinder being damaged.

Now, I have to do is to install my TC UCA...can you say WAT!?!
Plan to do it after the Halloween Run. So it will be early November.
I will let you all know.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 02-11-2012 at 09:26 AM. Reason: Helper Springs vs Air Bag systems
TEJASYOTA is offline
post #15 of 58 (permalink) Old 06-25-2008, 07:26 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Tiles are laid!

I have been debating between epoxy and tiled floor.

The good about epoxy - - looks great, lasts a long time, chemical resistant, water resistant.
The bad about epoxy - - EXPENSIVE, long prep time, if done wrong - delamination, chips if you drop something heavy, patching looks bad.


The good about tile - - cheaper than epoxy, lasts a long time, easy to replace damaged tiles, chemical resistant.
The bad about tile - - will allow liquids to seep between the tiles to the concrete floor.

I have dealt with commercial grade epoxy when renovating our machine shop and injection molding floor back in SC. Loved the stuff, but it was super expensive. I had someone quote our current 3 car garage and it came to near $4000!!!

I also knew about tiled floors by RaceDECK from my racing magazines. I too had them quote and they were under $1900.

In the end the tiles won and the order was placed directly to Race Deck.

Less than a week later something was left at the garage by UPS...


Peeking inside the box exposed this...




If every thing goes well during the install, it should turn out like this below...


The next day I started laying the tiles and noticed that I did not notice any RED tiles?!?!....I counted the boxes and I had to stop laying the tiles down, UPS did not deliver two of my containers from RaceDeck....they claim they were confused about the address?!!?

Damn they delivered 10 of the 12 containers of the tiles...

Plus they called three times to get directions...I just don't get it...
Anyways, I plan to be in SA tomorrow and I will stop by the UPS shipping facility to get my two boxes.

Idots...and i use to work for them back in the day.....oh well.
Cindy has been taking some pics of me laying the stuff down, super easy...but to center the tiles, I will be trimming three inches on the left side tiles and three inches on the right side tiles, so that the RED tiles will line up in the center of my garage.





Yep I am picky on that stuff...I want to finish the floor this coming Saturday...inbetween keeping myself cool with a cold one or two or three!
:beer:

That Saturday I finished the double stacked side of the garage..looks great. Still waiting for my final two boxes to show up...someday.
I will try to get it from UPS tomorrow, between lunch.



That Monday...more on the on going UPS story...well they still have not shipped my remaining two boxes to me...
they now want me to come and pick the stuff up...I wanted to try today, but Cindy and I were in the middle of directing the movers from our old place to the new place.
Now our place has big brown boxes all over!
So it looks like I will be getting my stuff this Monday (?)
I called UPS to find out where the warehouse is and they say it's on Seven State Street.
I asked is there a land mark or something I could reference?
They said they can not do that...because the people I was talking to was from FLORIDA ! -- WTF.
So all they could do is tell me turn by turn directions...almost like a Tom-Tom.
What really sucks other than missing the two boxes, those two boxes have my red tiles and my front edge tiles.
Which I need to really get my tiles lined up.
So my tiles sit - waiting to be driven on....until a later date...this sucks.

Then Tuesday, I was able to find the missing containers, almost as worse as the airlines. I started the final side Wednesday.

Today, I finished the floor - sort of!

After taking a swig of beer...


Then laying our the final tiles...


I used my bandsaw to cut the tiles to fit into the odd shaped areas.
You could use a jig saw or table saw.
Remember this is plastic, so when pushing the material thru the saw blade, go slow.
The faster you go, the blade will heat up and will melt the plastic behind the blade or heat the chips up to make it stick to the cut edge.
To trim the shavings, I have a deburring tool (I use to work for plastics injection molding company) that I used to remove the shavings...you could use a box cutter.

And with that the cutting and hammering of the tiles...they were all laid.


Next on the list is the cabinets and work table.

Looking at LISTA tool mobile cabinet and some other cabinets to store stuff. That will be another thread.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 02-13-2009 at 07:21 AM. Reason: Comment on cutting the tile.
TEJASYOTA is offline
post #16 of 58 (permalink) Old 09-05-2008, 08:12 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Filling out my workspace in my garage.

Day 1:
As you may have known, I had placed an order for new cabinets for my garage...after a month of waiting...they have arrived Sept 5 (Fri).

So after getting a Penske Rental truck with a Lift Gate...I headed over to Yellow Freight...


That is only TWO of the SIX Pallets that I picked up.
Not including a new work top for my table and a box of misc stuff from LISTA.


After a few hours of unloading them from the truck and breaking down the pallets....


I have placed the three major pieces in their proper place.


Sorry nothing yet inside them.

The remaining two cabinets that sit on top of two against the wall, will be installed Saturday.


Below is a photo of my new mobile tool chest.


Once I get the next two cabinets mounted...I will post additional photos.
Oh and the garage will be cleaned out more, after filling my cabinets up with my junk of spare parts from my Tacoma, BMWs and my bicycle ... oh yeah, and my tools.

Day 2:
Well with the help of Adam, Leslie, Cindy and two construction workers...we were able to lift into place the final two pieces of the cabinets.



The following cabinets shown have adjustable shelving.


The bottom cabinet has roll out shelving.


Thanks again and I will post up picks of the garage, once it get organized, my Craftsman tool box gets emptied and our two cars get to park inside again. Hope to get this completed this month.

Oh yeah - incase any one is wondering, YES the top and bottom cabinets are bolted together. I also will be anchoring the bottom to the concrete flooring.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 09-08-2008 at 08:13 PM. Reason: Final two cabinets installed!
TEJASYOTA is offline
post #17 of 58 (permalink) Old 10-11-2008, 09:36 AM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking ORS - CV Boot

Well after 100,000 miles of DD and wheeling, my CV boots have finally gave way.


Time to replace.


IF YOU REQUIRE TO DISASSEMBLE YOUR CV, check out the following video.
Http://youtu.be/5bTJRzrv4iA

I bought Off Road Solutions' RED High Angle CV Boots @ $ 49.95 each....yep each.


These are made differently than the stock versions, the fins are angled differently to allow the adjacent fin not to rub so much together.
In addition, because the ORS High Angle CV Boot is used on all types of CV's...these DO NOT have the Tulip Shapes, where you clamp.
So you would have to use cut off the original boot sealing flange and slide the ORS High Angle CV Boot over it, prior to clamping down.

There are tons of write ups on how to remove and install the new CV Boots.
ORS High Angle CV Boot Replacement directions

TTORA ADD CV Boot Replacement directions

KeystoneKrawlers CV Boot Replacement directions

So I will just show some interesting pics.

After removing the dust cap, you will remove the Lock Nut.
The Torque required to reassemble is 174 ft #.

Then you need to remove the 4 Bolts under the Lower Control Arm's Lower Ball Joint.
The Torque required to reassemble is 58 ft #.

Now you can slide the Spindle off the Axle....move toward the rear of the truck.
So you can have room to maneuver out the CV Assembly.


Break the Inner most CV Boot's metal strap...this is helping keep it in place.
You will then be able to wiggle out the assembly.


Cut off the boot, without cutting the Tulip Shaped end of the boot.
You will now need to clean off the CV assembly and remove the Tulip Bearing.

This is a roller bearing that rides and supports a great amount of moment and weight while the truck is in motion.
SO DO NOT WACK on the bearings, when you are removing it from the axle.
Use a center punch....it will slide off.

There are two retention clips...you need to slide down the large one that is under the Tulip Bearing...this one is a bitch to do...it is very heavy duty.


Then slide down the Tulip bearing to expose the smaller retention clip.


Remove...


The rest of the work is very easy...
clean...clean...clean...clean....

Then repack with grease...there are 4 packs.
So use two per boot.

The longest part of this maintenance was trying to slide the new CV Boot onto the remaining portion of the old CV Boot's Tulip shaped end.




With all the grease...it was hard to get a handle.


Remember to burp the boot - - to release any excess air.
You want to make sure that the boot does not expand or collapse from it's natural shape during any articulation of the CV assembly.
You can cycle the assembly, before clamping the whole thing.

Regarding the clamping, the clamps that came from the factory, were the Oetiker clamp.
http://www.oetiker.com/content.asp?l=4&idNavig=1


To clamp them you need to use a crimper tool, that can be found at most autoparts stores.


But you will find that most of us, including me, use the old reusable worm drive hose clamp.

The only thing is that you could tighten it too tight and cut into the rubber.
On my install, I used the hose clamp, but trimmed off the extra material, so it will not be flying around and potentially cut any of the rubber if bent back.

That's about it....oh yeah...remember to check your bolts after a weeks of driving.


I will be checking on all my bolts and clamps this weekend....about 350 miles later.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 08-11-2013 at 09:09 AM.
TEJASYOTA is offline
post #18 of 58 (permalink) Old 10-25-2008, 07:59 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Front Brake Lines-Goodridge

Well...after buying these Goodridge brakes about 6-months ago...I felt it was time to install them.
These are DOT approved/tested brake lines.
In case you are wondering...DOT brake lines are 100% Tested before packaging.

I have current experience with Goodridge Brake Lines....I first installed them in my 2000 Z3 and then again for the rear application for my Tacoma truck.
They are stainless steel braided and sheathed in rubber.
Goodridge website-usa

Goodridge's report on Stainless vs. Rubber brakelines - click here

Well today I headed over to Americana Off-Road in San Antonio, off Rt-281.
AmericanaOff-road.com

It was part of the TLCA WAT.
We all had a fun time wrenching....and eating!
Before you start, make sure you have something to capture the drippings of the brake fluid.
Anyways...the removal is quite easy at the banjo nut.
But the C-clip at the truck's frame was a BITCH to remove.
Good knuckle busters.
Anyways...after removing, reinstall and tighten down.




Now the fun part...bleeding the brakes.

YOU have two choices...
Get a power bleeder like Motive.
Or enlist a friend like Josh (Land Cruiser owner).
I opted for the friend-aide!

Steps to bleed.
- find bleeder nut & 10-mm wrench.
- remove rubber dust cover
- remove cover from m/c reservoir.
Starting at the passenger rear brake.
- Driver Says "Open" or "unbolt"
- Wrencher opens/unbolts bleeder nut (but only to loosen not remove).
- Wrencher says "Open" or "unbolt"
- Driver depress brake pedal
- Wrencher watches fluid exits and capture in a torn open alum. can.
- Driver Says "Close" or "tighten"
- Wrencher closes/tightens bleeder nut.
- Wrencher say "Close" or "tighten"
- Driver releases brake pedal
- Repeat about 5-times...this depends if you are totally replacing the fluid or removing air from the system.

Do this again for the Driver rear brake.
Do this again for the Proportioning Valve.
CHECK Brake Fluid Level - fill if necessary.
Do this again for the Passenger FRONT brake.
Do this again for the Driver FRONT brake.
CHECK Brake Fluid Level, one last time and fill if needed.

That's about it...remember to wash your hands afterwords...and keep the brake fluid off any painted surface...it will dissolve it!
Plus reinstall those rubber boots on the bleeder nuts and cap your M/C Reservoir.

That's it - have fun and good luck!

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 10-26-2008 at 08:30 AM.
TEJASYOTA is offline
post #19 of 58 (permalink) Old 11-01-2008, 08:11 AM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking LISTA Mobile Cabinet replaced!

Not much has happened on clearing out the garage of the boxes that was moved from our ol' home. One of the bedrooms is being converted into a Craft/Office Room with new cabinets. So all the stuff that goes into there is still in the garage and our two Bimmers are out on the driveway.

Here is the current project in the home...
The cabinets will be a distressed look.
I get a small section for our computer...while Cindy gets the rest.
Note I am not doing this most excellent work.
They still have to finish the painting and flooring and finishing touches.
THe designers said about two weeks.







Anyways back to the garage, not sure if I mentioned this, but when I had removed the packaging from my Mobile Cabinet, I noticed a dent at the corner.





It did not affect the function of the drawers or lock.
But I called Lista Tool Boxes.com, whom I purchased them from, and they said they will order a replacement and schedule a pick up/delivery.

WOW! I was impressed - what customer service.
If you do get stuff from them, both Charles and Leslie are great in communications and answering questions.

Well...about 1-month later...new cabinet delivered, damaged cabinet removed!





It is now ready to accept my tools from my ol' Craftsman box.
Hope to get started on it this weekend.
Still have to wait for the tool organizers - - placed on my Christmas wish list. :thumbup:

That's it for now...still need to empty the garage of the boxes....soon soon...

edit:
I have been slowing filling up my Lista cabinets of tools and spare parts and equipment.


Plus Cindy gave me this kick ass sign for my garage...

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 12-28-2008 at 05:48 PM. Reason: start filling the drawers with tools & other stuff
TEJASYOTA is offline
post #20 of 58 (permalink) Old 12-30-2008, 04:17 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Roger Brown Body Lift - 1 inch

Install date: November 10, 2007

Soon after the installation of my suspension, it was time to get something from Roger Brown (4crawler.com).
I purchased his Body Lift at 1-inch with heavy duty hardware.

Well this morning with Adam, we were able to knock out the install of the Roger Brown 1-inch body lift.
( 4 Crawler Offroad Products-BL click here! )
The reason for this size was simple for me. I did not want to deal with extending the gas filler tube and the radiator. With the 1-inch, the only thing I really needed was the steering spacer and body lift spacers.


$172
> * UHMW_PE fiber blocks
> * Colored BLACK (option)
> * Ultimate option
> * Grade 8 hardware (option)
> * Steering shaft extender
> * Radiator
> * Bed Spacers (option - so I can still carry heavy loads in my bed of the truck).

plus $15 for insured shipping.

I think if I bought the "normal version" it might had costed $ 122 + shipping.

If you do go for it, email Roger and give him the specs of your truck (suspension, bumper, etc) and he will tell you the cost break down. He responded really quickly.

FYI - we did NOT use the radiator spacer. Not required, unless you run more than an 1-inch body lift.

We were able to finish the install well under 3 hours.
We did the bed first, but did not tightened any thing until the front was done. Photo below is stock bed set up.


Photo below is bed with spacers installed.


This way we were able to align both bodies.


One tech tip is that the (4) washers and split washers will be reused for interior's bolts for the Cab. The front two new bolts will use the press fitted washer that was on the stock front bolts.

The write up on Roger Brown's website was detailed and easy to follow.
How to install the Body Lift (BL) for the Tacoma-click here!

One other tech tip is when you take the bolts off the UPPER STEERING LINKAGE, it was easier with a knuckle adapter for the socket wrench.
You will also need to unloosen the bolt that is connected to the adjustable clamp located on the upper steering linkage (it is on the piece that is casted and black) - see photos.
Photo below shows the steering linkage disassembled.


Photo below shows the spacer installed.



We also used Red bottle LOCTite to ensure no nut or bolt will back off - - yes the Heavy Duty Grade 8 Nuts and Bolts come with the plastic Lock Nut.

After the install we fitted Adam's spare 33-inch mud tires, the only place that it rubbed was at the pinch weld area.

Of course we do know that at full stuff it is most likely will also rub else where, so before I get new larger tires, I will have my TC UCA's installed and the pinch welds fixed

I still have to install the Bed's support spacers.

I plan to do that tomorrow. That will be a simple drill and screw in the self tapping screw with the support spacers. They are made out of metal.
I will post those pics when I am completed.

Again - THANKS TO Adam! I owe you a meal!
Any ways new tires and wheels will come next year.

11/11/07 edit:
Installed the Bed Spacer ($12) today, took two drill bits, a 1/8" then a 3/16", did the pilot hole with the 1/8, then finished off with the 3/16. I then using the self tapping screw, I generated the threads. I removed the screw then used JB Weld to permanently anchor both the screw and the spacer to the frame. The finish product is below.



I also had to modify my Gas Filler Cover.
Remove the gas cap.
Unbolt the plastic cover and remove from filler tube.
Cut off rubber backing.
Trim between 4 to 7 oclock position.



Reinstall.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005
TEJASYOTA is offline
post #21 of 58 (permalink) Old 12-30-2008, 05:49 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking On Board Air system

Post date: May 5, 2007

Well today I started the installation of my On Board Air System by Viair.
This late Saturday morning I started the install. Finish mounting the tank, compressor, gage and hardwiring. I first was thinking of mounting the total system into my JFAB Tool box. But I opted not too, due to if I wanted to remove the tool box. I would have to contend with the weight of the box PLUS the OBA system. My back could not handle that very well.

SO I did some simple sketches of where I located the stuff.

Over-view


Rear View


I purchased a Viair's 450C w/ 2.5 gallon tank.
"Constant Duty Onboard Air System"
Part number 10007




As quoted from Viair's site:
Quote:
By ordering a single part number, you can take all of the guess-work out of getting all of the parts you'll need to install one of the most sophisticated, all-inclusive onboard air systems available today. The Constant Duty Onboard Air System comes complete with a long-running 450C, 100% Duty Cycle compressor at its heart that will fill the supplied 2.5 gallon tank from 110-150 PSI in approximately one minute. Unlike our other systems, the Constant Duty Onboard Air System can operate for longer periods of time without needing to rest. Included is everything you'll need to add a reliable air source to your vehicle as well as inflate tires with the included clip-on air chuck.
(For vehicles with up to 37-inch tires)

I started with the location of the tank under the bed, just behind the rear axle and before the crank for the spare tire.
Removed the spare tire & the spare tire's centering sheetmetal.

Factory Spare Tire Carrier


Removed the two out-riggers


Mounted the 2.5 Gallon Tank under the bed


Note that I added spacers to the LEFT side, so that I could drain any water that may be collect, during operation. I drain the system, after every event.

Time for the compressor storage location - I mounted the compressor in my ammo-box.


Compressor and fittings and controls installed in the Ammo box.


The Ammo box is bolted to the truck's bed and holes were made to allow passage of the electrical and hoses.

Time for the routing of the tubing.


I opted not to use the small plastic tubing (Supply & Return lines) that was supplied with the kit. I had some pnematic hose left over, so off to Lowes I went to find some barbed fittings to use on the Air Tank.

The system comes with that cheap ass plastic 1/4" tubing
I felt the need of something more beefy for a supply and return between the compressor and air tank.
I have some left over 3/8 pneumatic tubing, I just need to head to Lowes for the barbed fittings with hose clamps. And get that 90 degree bend 1/4" NPT fitting for the pressure gage.



Future Mods to the system:

There was also one other item that I plan to change out later, it's the pressure relay switch, the body is damn LLLOOONNNGGG!!!


The corner of the plastic (where the circuit diagram is shown on the picture) was hitting the frame's wall while I was screwing it on.

If it ever fails, I will get a shorter one like this...

It's from Macromotive.com, it's a Heavy Duty Pressure Switch 110-psi ON and 150-psi OFF with a relay.

Finished product
Ammo Box with Compressor


Quote:
Originally Posted by mudwieser View Post
I honestly think you should put a switch in the cab so for example when we get done on a run and were driving to a gas station for everyone eles to fill up you can turn the air compressor on to fill the tank before we get there....
Adam: I did thought about doing it that way, but I would need to drill air vents into the ammo box and still filter it to keep dust out. I figure I can pressurize the system before our outtings, while waiting in the parking lots. Who knows, I can always come up with something later on.

Air Tank under the Bed.


Below are the times to fill:
Time to fill a 2.5 gallon tank @ 150-psi = 3.50 minutes
Time to fill a 265/75 R16 tire from 15-psi = 60 seconds

As for electrical...I wanted the OBA to operate when the truck is running.
I did not want to drain a battery during any air-up after a wheeling adventure.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005
TEJASYOTA is offline
post #22 of 58 (permalink) Old 01-31-2009, 10:34 AM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Bud Built Front Skid Plate

First Bud Built rocks as a vendor!
Second, THANKS to REAPER & Mrs. Reaper for hosting the January 30th WAT / BBQ!!!
We had a great time and the Bacon Explosion by Prematuregrey was AMAZING!
It was not greasy and not dry.
In addition, Speedemon55, made some killer baked beans with MORE bacon.
This WAT / BBQ was one of the best I have been to in a long time.









On to the install....

I had ordered a front skid plate, basically the last day of 2008....prior to the price increase.
It was getting delivered by Fed Ex.
Well, apparently FedEx, forgotten how to get to my home, so they called me.
I gave the directions and went back to working on my computer.
No more than 10 Min's later, I get a call from Bud!
He wanted to know if Fed Ex called to find my home....WOW!
Now that is ultra-rare for a owner calling to make sure my stuff made it here!
Major props to Bud for doing that!

Yeah, it's RED!!!






One thing I noticed, that the camera could not pick up, is that the front of the skid plate has "BUD BUILT..." engraved. So cool.
If I can find some black metal paint, I think it would be great to out line it, so it would be more visible.

THANKS BUD!!!



On to the install...well my old stock skid was partly off - missing bolts and barely hanging on.
I first undid the two mounting bolts that's attached to the steering rack.
Next I dry mounted the Bud Bracket (hey I made it up) to see how it would fit.

Note that the flange will be aiming towards the rear of the truck.

Well the left hand bolt aligned fine.
But the right hand bolt did not align...infact, the flange for the bracket that holds the steering rack was really tall and interfered the Bud Bracket from sitting flush.



Well after getting on to Reaper's computer to view some other installs, I determined that my steering rack bracket was different than others and no one else mentioned it not fitting properly at that area.

SO...out come my Dremel tool.


A few minuets later...


One my dry fit....


Perfect...a squirt of paint and a few more minuets of bolting down.


Next was to mount the main Skid Plate.
I first mistakenly tried to mount it to my ARB....wrong hole pattern.

I then realized it was to hook up to the front cross member that is really thin and not structurally sound.
A washer was placed under the head of the bolt and under the base of the nut.
The use of additional washers is to help spread out the forces of the assembly.
Basically sandwiching the sheet metal between.

It bolted up fine, as you can see.


Sometime in the future I plan to change out that factory piece with something more STOUT!

Continuing on the build....
I left the bolts loose, then headed to the rear and bolted up the remaining areas.
Only one threaded hole, I had to use the supplied bolt as a thread chaser.
With some WD-40 and constant easing in and out, the thread was saved - no cross threading or flattening of the thread.

Here is the final assembly with every thing bolted down....





Thanks again to Bud Built for a well built skid plate and for Reaper for allowing us invade his home!

Oh yeah...I can not leave without this parting photo of Father and Son!


Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 02-06-2009 at 06:39 AM.
TEJASYOTA is offline
post #23 of 58 (permalink) Old 03-22-2009, 02:49 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking ARB Snorkel

Well today, 3/22/2009, I did some on my truck.
Last week, I purchased an ARB Snorkel kit for my 2001 Tacoma from Toyota of Dallas (TRD Parts4U.com). Thanks to Gerone Scott!



I visited the local Lowes to get a 3-1/4" (83mm) Hole saw, 5/8 (16mm) Drill bit and a 5/16" (8mm) drill bit.
]Then off to Autozone for some RTV Sensor safe silicone (Permatex blue RTV silicon sealant, part number 80022).

First I read up on both Expeditions West install and Parks Off Road install.
Parks Offroad Snorkel Install - click here

Expeditions West Snorkel Install - click here

So instead of basically rewritting their most excellent instructions, I will give the highlights.

Removal of the outter fender.


Taping (to prevent the paint from chipping) and then laying out the pattern.




The drilling!


The debris.


After using a chamfering drill bit, I deburred the inner and outer edges.


I then painted the edges with Rustolium Paint to prevent corrosion.


Drilled and installed the main Snorkel Intake - do not tighten down.
NOTE - DO NOT bolt down the upper A-pillar bracket.


TECH TIP to install the three studs with lock nuts and washers.
For the two closest to the wheel well was done LAST.
The one nearest the antenna was done first.
1) I did NOT mount the stud into the Snorkel.
2) Premounted the stud with the washer and lock nut together.
3) Reach inside and pre-thread the sub-assembly into the main Snorkel Intake's threaded bushing.
This made this task slightly easier.
You may need to rotate/pivot the main Snorkel Intake away from the body fender to gain enough room to get your hand up there.

Now tighten everything down.
Now remove the factory air box and hose.
Clean, clean, clean!
Reinstall the factory box and SILICONE the plastic to plastic connections.


Joining the ARB Rubber Hose to the end of the Factory Hose.
Because of the close fit of the inner diameter to the outter diameter of the mating hoses, I used a screwdriver to help force the factory end into the ARB hose.
Going from left to right.

ARB Hose aiming down.


Factory Hose and ARB Hose - prior to being force together with my screwdriver.




All together.


All Done!


Inside view.


Outside view.


One last note, PLAN on purchasing the FACTORY Plastic clips.
The black versions, I was able to reuse, but the ones that were for the fender (Red and Blue), most did not make the disassembly process.
Here are their part numbers.
Black square snaps: 90189-06013
Red snaps: 90904-67036
Blue snaps: 90904-67037

So I will be heading to the dealer to get extras later this week...the factory fender flare was not reinstalled - yet.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005
TEJASYOTA is offline
post #24 of 58 (permalink) Old 04-25-2009, 08:32 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking CBI Bumper-tilt repair

Quote:
Originally Posted by TEJASYOTA View Post
In the original photo after the initial install of the CBI Bumper you can see that the bumper is slightly tilting towards the rear.
Over the year of ownership, that tilt increased more since it has been hit by rocks and my friend's front bumper......to the point that the side rail main square tube was touching the cut rear fender.

I have been putting it off to have it fixed...well this past Friday, April 24, I headed over to JFAB's fabrication shop in San Marcos to do some and ...

First we removed the bottom mount plate. We felt that it was preventing the bumper from leveling correctly with the bolt holes in the frame.



We then, with the use of JFAB's forklift, lifted the bumper, ever so slightly and then untightened everything.
We then shimmed and measured the distance from the top of the frame to the top of the side guard's square tubing...measured in two different locations so we knew the CBI Bumper was level with the truck's frame.

After a few tack welds, JFAB, welded up the front edge of the Side Guard's plates.


He then welded the inside rear edge of the frame to the inside of the Side Guard's plate.


Finally, he welded back on the bottom plate that we had previously removed.



After painting, bolting eveything back into place...the bumper looks way better. You can now see that the bottom edge of the cut fender is fairly parallel to the bumper's Side Guard.



Big thanks to Jayce (JFAB) of San Marcos , Texas for helping me do this needed repair.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005
TEJASYOTA is offline
post #25 of 58 (permalink) Old 05-02-2009, 11:22 AM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking New USED Headlamp replacement

After 9-years of ownership...lots of dirt, mud, rocks, trees, bug hits, etc.
The front end of my headlamp lens looked like what it hit - - CRAPPY and Foggy!


Note, that I have done the sanding, polishing of these lens many times.
After the last refinishing job, the lens were still not clear.
So I decided to search and purchase "new" headlamp assemblies.

I have been patiently waiting, searching for a replacement.
Then fellow TTORA Member ThunderONE, was selling his set.
PayPal and a week later...they arrived.


Following the Tacoma FSM's instructions of removing the Side Markers and Front Grill was fairly easy.

Since I have an ARB Bull Bumper, the Bull Bar was fairly close to the grill, so the extraction of the grill did not happen.
I just unclipped the mounts and let the grill hang in place.

Undoing the bolt (1) and nuts (2) for the headlamps was easy.
The removal of the Headlamp assy was something of a puzzle.
After a few different twists and turns, I was able to remove the headlamp assemblies.

Here were the steps.
1) Using one hand or a piece of wood, wedge it between the back side of the grill and the sheet metal it was mounted on.

2) Pull headlamp close to the back side of the grill.


3) Twist the headlamp top towards you, so the lens will tilt towards you and then eventually downwards.


4) Pull through the Grill's headlamp opening, the stud side of the headlamp towards you.
You will most likely need to shuffle the Grill (left to right) to allow the headlamp to squeeze through.


You might want to place a towel on the bottom edge of the headlamp opening of the grill.
This will prevent and scratches to the lens.
I forgot about doing that....

Now you are done with the removal.


The only thing I had pick and pull from my old headlamp was the alignment brackets.
They are the black plastic things on the back sides of the headlamp.
That was easy to remove and reinstall...use a thin flat head screwdriver to release the clips.


Now the reassembly was basically backwards...

I will not bore you with that, so here is the finished product.


Just under 1-hour work.
Tonight I will check out the beam alignment, via eyeballing it.

Again, thanks to ThunderONE for selling his to me.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005
TEJASYOTA is offline
post #26 of 58 (permalink) Old 07-03-2009, 08:11 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Hi-Lift X-treme 60 incher

Well, about two weeks ago, my co-worker, who owns a Jeep, wanted to know if I was interested in selling my Hi-Lift. I said what? and also going through my mind...one side said "why can he not buy one himself?" and the other said "Cool, any excuse to get something newer!"....well my better judgment got the better of me.
.
.
.
.
.
I sold it to him for $40.
So now I needed to look into a new Hi-Lift.
First thing that came to my mind, the UBER-cool X-treme Hi-Lift (60-inch version).

Fast forward to today, I unboxed a very long and heavy item and inside.

I relocated my WABFAB slider adapter onto the new jack.

I bought it w/ a new red handle holder for a little over $150 (includes shipping) from Poly Performance

Poly Performance.com - click here

My first Hi-Lift was mounted on my CBI Bumper with just two butterfly nuts.


I have been lucky that no one wanted to take my old Hi-Lift.
So I wanted to figure out how to lock it to the bumper (without buying anything new).

This what I did...
Original Hi-Lift Mount for my CBI Bumper


Drilled another hole, deburr and paint.


Used (2) 1/2-13 3-inch long Bolts and spacers that I had laying around.
And now the Hi-Lift X-treme is locked and loaded.


The new look for the rear.


Total height = 91 inches (7 feet 7 inches).
My highest point is my CB antenna at 95 inches (7 ft-11 in).
I think I need to add a note inside to remind me of my height clearances.

Right now the bolt is held in place with the butterfly nut.
I think I will stop by JFAB's place to have him weld them into place.
If I do, I will update this thread.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 07-04-2009 at 11:14 AM.
TEJASYOTA is offline
post #27 of 58 (permalink) Old 09-12-2009, 07:57 AM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Added links to help navigate

For the modifications I have done in the years of owning my Tacoma, I realized that this Garage Thread was getting REAL LONG and slower to up load all the photos. So to make it easier for people to get to the important items they are looking for, I have added hyperlinks to the first posting.
So all you have to do is to click onto any description (highlighted in Red) and it will go directly to that thread.

email or PM me with any questions.
Later!
Nathan

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005
TEJASYOTA is offline
post #28 of 58 (permalink) Old 10-10-2009, 01:13 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Axe and Shovel Carrier

I wanted a place to mount my axe and shovel, other than tossing it into the bed of my truck.
I then remembered seeing Expedition West's shovel and axe carrier.
Photo from Scott Brady's most excellent '04 Tacoma.


Instead of using a piece of wood and painting and then mounting it on the side of my truck.
- I opted for my spare piece of plastic board from an outside deck that we had built for my parent's home.
- The location of the tools will be placed on my Bed Bar, that was designed and built by JFAB of San Marcos, Tx, same guy that designed and built my Tool Box.

The Components:
- To hold the tools in place, not thought went into this, other than the size. An order for Quick Fists from Sierra Expeditions.com (thanks guys!)

Here are the sizes of the Quick Fists that I used:

Shove; & Axe: medium sized... (1 to 2.5" size).

- True Temper Axe (Model 1215400) from a True Value Hardware Store that was closing down.
The reason for this type of axe, was mainly for it's artificial handle, so if I hit the handle on a log, it would not splinter. I also like the little plastic cover for the blade.
Cost: $30

- Ridgid Shovel (Model 1390400) Digging Shovel from Home Depot.
I was originally trying to find a shovel with an artificial handle like my axe, but did not see on at either HD or Lowes, so I picked this, because of the D-Handle for grip, the spade tip design to dig into dirt, and the long tang to increase the strength of the overall handle from breakage.
Cost: $22



The Installation:
First was to measure, cut, router the edges, drill holes for bolts and mount up my piece of plastic wood.




I had some spare Grade 8 hardware laying around... heavy duty hardware for heavy duty tools!


After fooling around with the layout for the axe and shovel, I
drilled the holes for the Quick Fists and mounted them.


Finally, the test fit of my new tool carrier.


Overall I am very pleased with the outcome.

edit: Note that the axe's edge is aiming up... it will not during actual trips.... better to be aiming down to prevent accidents.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005

Last edited by TEJASYOTA; 12-29-2012 at 06:49 AM.
TEJASYOTA is offline
post #29 of 58 (permalink) Old 10-11-2009, 11:36 AM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Blind someone with your flashlights.

I had these done a couple years ago... never documented or photographed the install.
Overall it is simple.

I had one criteria, easy to reach.
After searching around TTORA, I saw someone post up a photo of their Maglite on the driverseat's lower plastic trim - - PERFECT.
So an order of Quick Fists were in order.
Since I wanted to install two different flashlights, my MAGLite and SureFire.
I purchased two different sizes, the mini Q-F (5/8 to 1-3/8" size) and the Medium Q-F (1 to 2.5" size).

The install was easy:
1) Dry fit the total assembly of the flashlight and Q-F and see where it will fit, without interference with any other controls or the door.
2) Mark the locations to drill out the holes for the bolts.
3) Remove the plastic trim or door panel.
4) Drill the holes.
5) Attach the Q-F. Note I used some Locktite to keep the bolts from unloosening.
6) Reinstall the trim.... and you are all done!

Quick note for the installation of my Surefire flashlight, since this light can be use as a defense type of weapon (temporary blinding anyone), I needed it to be not restricted by the clasp.
So out came my knife and off with the rubber clasp.

Here are the finished install.




Now I can pull my SureFire and blind the person and then get out of the truck and grab my MAGLite to beat the person senseless!
Or just drive away ....

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005
TEJASYOTA is offline
post #30 of 58 (permalink) Old 03-29-2010, 08:21 PM Thread Starter
STITCH - Come and Take it!

TEJASYOTA's Avatar

Join Date: Nov 2005
Location: The country of TEXAS!
Posts: 9,051
Garage
Talking Where the hell is my phone?!?!?

Well, after close to 10 years of trying to find a location to keep my phone from flying around or being in view so I can see who is calling. I finally broke down and bought a new phone carrier for my iPhone (3G-s 32 Gig).

After some searching and no responses to my questions....
I purchased the ProClip holder for my Tacoma.
http://www.proclipusa.com/

You have to purchase two parts, the dash mount and the phone holder.

Cost was on the high side for this type of holder.
ProClip Center Mount (852253) = $ 30
ProClip Adjustable Holder with Pass-through Connector (516042) = $ 80
Grand total of $110... yep that much.

And you still have to put it together with (5) screws.
Here is the photo from their site:


Here are mine with my iPhone next to it.
Front view:


Rear view:


Side view:


Mount of the Center Dash holder was easy.
Remove the backing from the tape and snap into place.
I made sure it was fairly centered, so the air will flow easy.


In the photo you will see the base for the phone mount. That is held by (4) screws.


Below is the main phone holder being screwed into the base.
One screw is used.


ALL DONE.


Phone in place.
Vertical mode.


Horizontal mode.


My favorite iPhone app - its a GPS enabled compass and clinometer.


Now you may be asking why did you spend $110 for just a phone holder.
Well, i wanted to be use my iPhone as an mps and use the mount to hook up to my Alpine. When I tried to plug in the phone... no tunes and the battery was not getting charged?!?!?
So I took the mount off to investigate and this is what I saw.


Due to my OtterBox's plastic shell, there connector will not sit flush to the ProClip - with out some modification.
So i do plan to modify it to make it work.
Oh BTW, my cell phone does work with the ProClip, with out my monster OtterBox case.
I am also sure it would work with thinner cases.

I will post up the mod, when I get a chance to work on it.

Ciao! - - Nathan
South Central-TTORA Regional Director of TX, AR, MO, KS & OK.
The "UN"-Official TTORA Welcomer
STITCH - '01 Tacoma DCab (some mods - click here)
'00 BMW Z3 (more mods) + '12 MINI Countryman ALL4 (NO mods)
Have fun and do not wheel alone.
Quote:
Originally Posted by speedemon55 View Post
i have to say i'd like to be the first person to jack off on your garage floor....
www.Z3POWER.net
TTORA Member since Nov 18, 2005 - - TLCA Member since June 4, 2008 - - EX-PO Member since Nov 18, 2005
TEJASYOTA is offline
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the TTORA Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Similar Threads
Thread Thread Starter Forum Replies Last Post
Tacoma bumper build sk8erkidGK Fabrication/Tools 55 01-09-2008 01:51 AM
CBI's installed on TejasYOTA (m) TEJASYOTA Central Region 6 01-08-2007 03:11 PM
4-5K build up on 99' v6 trd tacoma help needed HellBorn Early Tacoma Tech 16 04-25-2006 07:15 AM
Cool Tacoma-looking build CronusTRD Early Tacoma Tech 21 04-17-2006 07:00 PM
Help Build 03 Tacoma Jedediah Lythgoe Early Tacoma Tech 4 12-05-2005 08:34 PM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
